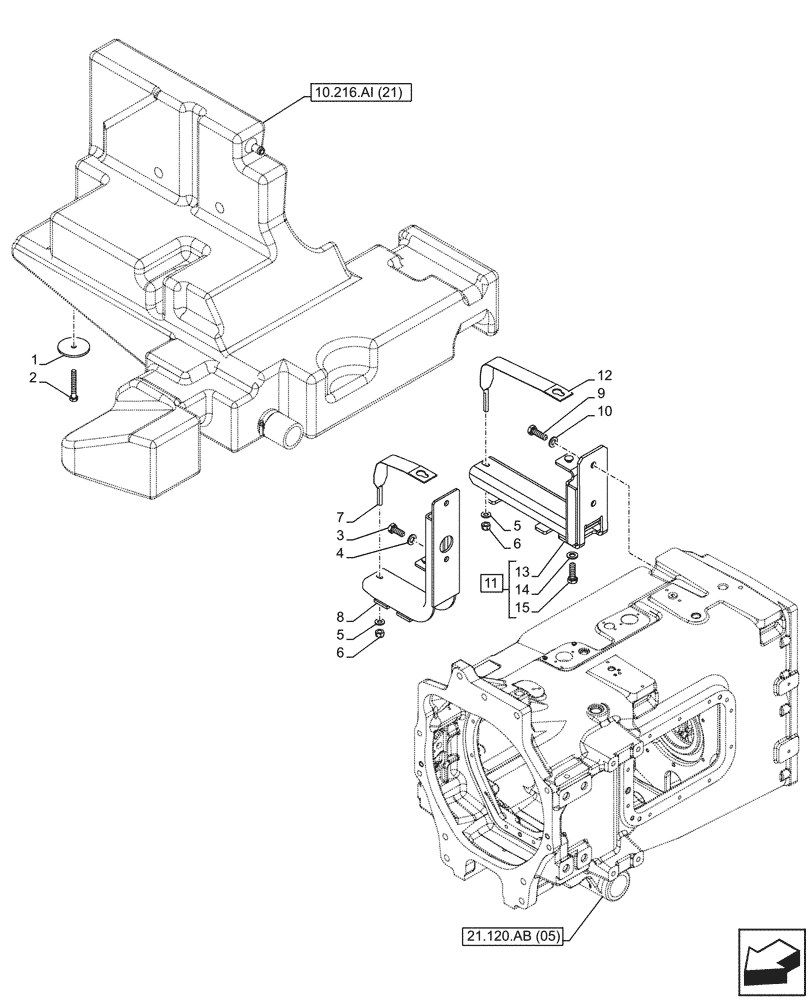

Запчасти Case IH PUMA 185 CVT (10.216.AI[08]) - VAR - 391131, 758001 - FUEL TANK, SUPPORT (RH) (10) - ENGINE

1

120115

BOLT,M10 x 1.5 x 76.58mm, Cl 8.8

1шт.

2

84596792

WASHER,11.0mm ID x 70mm OD x 4.5mm Thk

1шт.

3

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

4

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

5

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

7

84316026

STRAP

1шт.

8

84330727

SUPPORT

1шт.

9

11112821

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.

10

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

11

47810459

BRACKET

ASSY, Incl 13, 14

1шт.

12

84312230

STRAP

1шт.

13

NSS

NOT SOLD SEPARAT

Tank Bracket, Incl 11

1шт.

14

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

2шт.

15

935388

BOLT,Hex, M10 x 28mm, Cl 8.8, Full Thd

2шт.
