Запчасти Case IH PUMA 185 CVT (55.512.CQ[07]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, AIR COMPRESSOR, SWITCH (55) - ELECTRICAL SYSTEMS

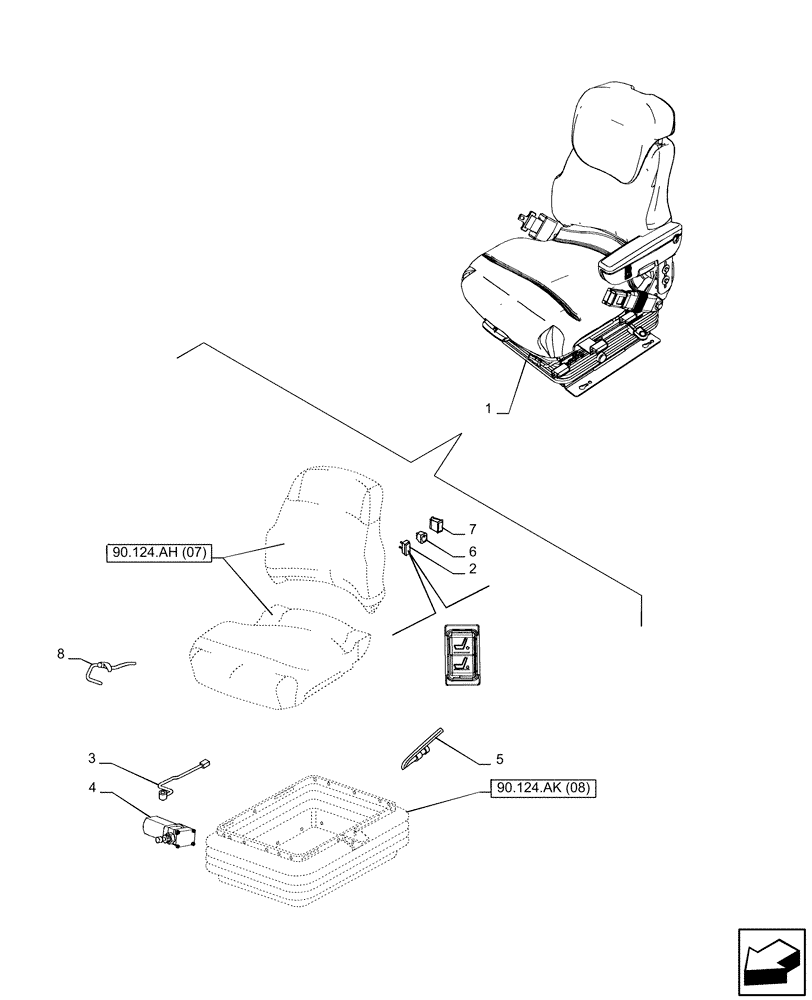

Схема запчастей Case IH PUMA 185 CVT - (55.512.CQ[07]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, AIR COMPRESSOR, SWITCH (55) - ELECTRICAL SYSTEMS
90.124.ak (08)
6
5
3
4
7
1
2
8
90.124.ah (07)

Артикул

Название

Примечание

Количество

1

84171555

DRIVER SEAT

W/Air Suspension, Assy, Incl 2 - 8

1шт.

See Driver Seat Components also in Figure 90.124.AD (07), 90.124AE (07) 90.124.AH (07), 90.124.AK (08)

1шт.

See Driver Seat Components also in Figure 90.124.AL (07), 90.124.AM (07), 90.151.AD (07)

1шт.

2

87308605

SWITCH

1шт.

3

87529796

SWITCH

1шт.

4

87529857

SEAT ACCESSORY

1шт.

5

87529793

HARNESS

1шт.

6

87308609

PREHEATING SWITCH

1шт.

7

87529797

SWITCH

1шт.

8

87529848

KIT

1шт.

Выбрано товаров: 10
