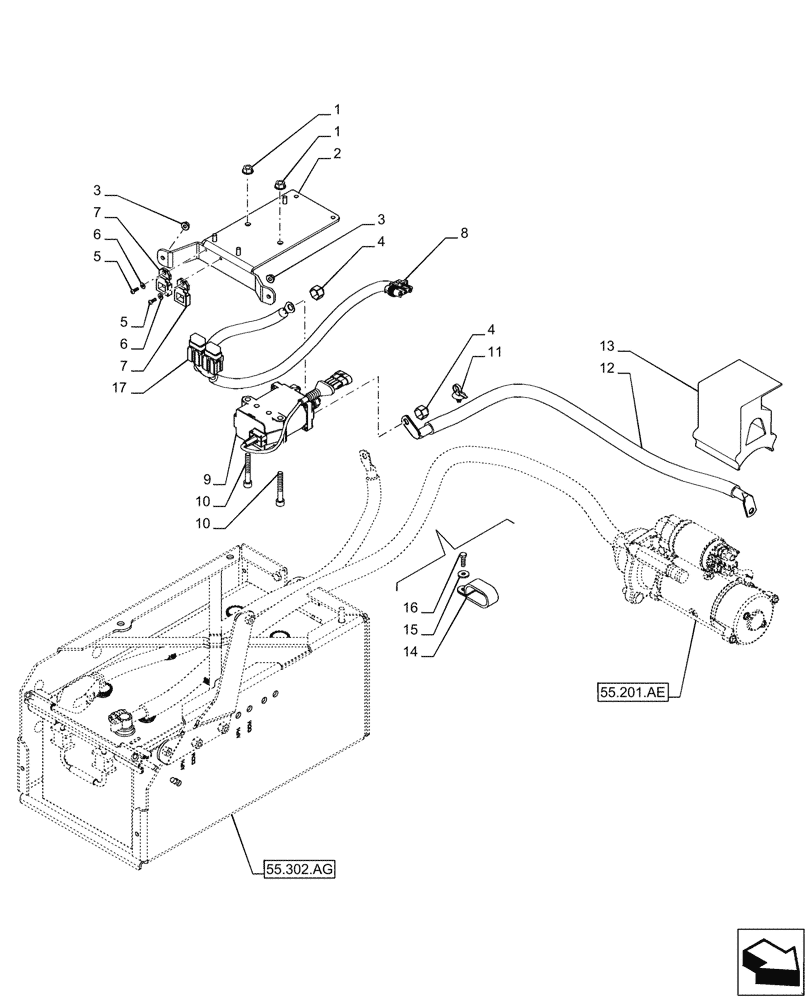

Запчасти Case IH PUMA 185 CVT (55.302.AI) - VAR - 391130, 758000 - BATTERY ISOLATOR (55) - ELECTRICAL SYSTEMS

1

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

2

47588811

BRACKET

Battery Isolator

1шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

4

82012814

CAP,M10

2шт.

5

87682417

SCREW,BTN HD, M4 x 12mm, Cl 8.8

M4 x 12

2шт.

6

13550001

WASHER,4.15mm ID x 10mm OD x 0.8mm Thk

4.15 x 10 x 0.8

2шт.

7

47588814

FUSE HOLDER

2шт.

8

47579342

WIRE HARNESS

1шт.

9

84576869

RELAY,12V, 250A

12V, 300A

1шт.

10

14302231

SCREW,M8 x 55mm, Cl 10.9

2шт.

11

82033028

CABLE TIE,170mm L

Cable Tie

1шт.

12

47579339

WIRE HARNESS

Motor Starter

1шт.

13

82039109

COVER

1шт.

14

82023568

CLAMP,2 Hoses

Water Hose

1шт.

15

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

16

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

17

84247657

FUSE HOLDER

2шт.

Cover NSS

1шт.
