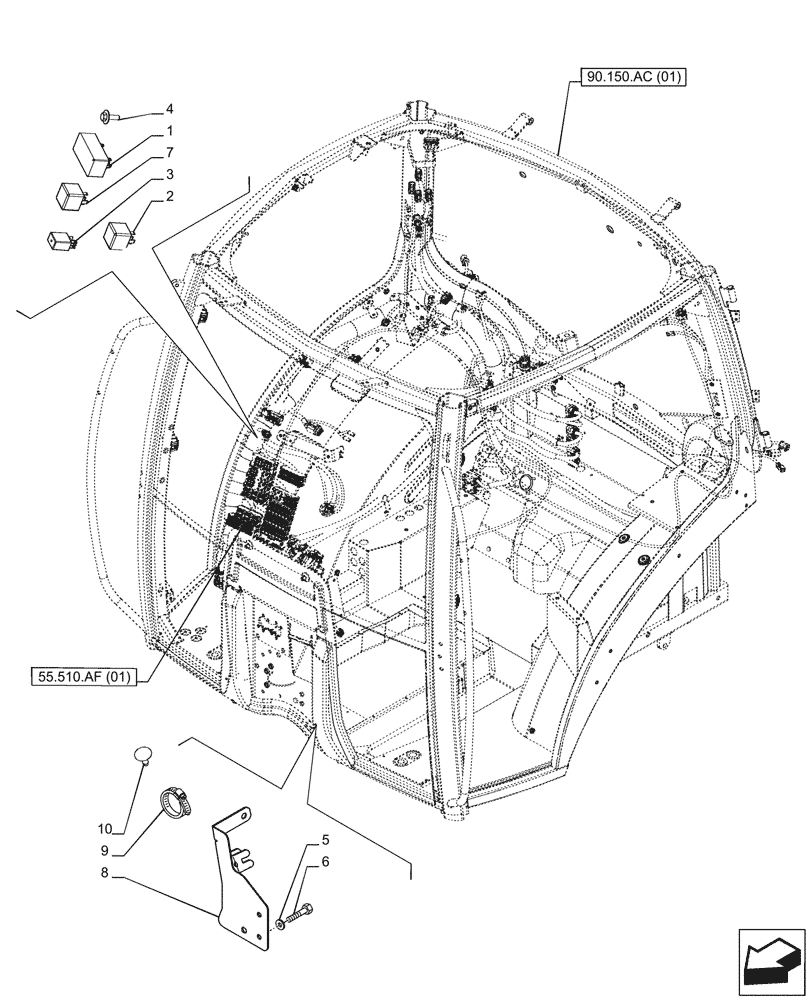

Запчасти Case IH PUMA 185 CVT (55.100.DO[04]) - VAR - 337473, 337475, 337476 - RELAY (55) - ELECTRICAL SYSTEMS

1

87304226

RELAY,12V, Combined, Black

Wiper Module

1шт.

2

82030798

RELAY,12V, 70A

70A

2шт.

3

84543528

RELAY,12V, 20A, Micro

10/20A

9шт.

4

83929012

CAPTIVE WASHER SCREW,HWH, M6.3 x 1.8 x 20mm

2шт.

5

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

7

82013124

RELAY,12V, 30A

30A

2шт.

8

87597230

SUPPORT

Pedal Box Harness

1шт.

9

14560287

CABLE TIE,207.00mm L

5шт.

10

10558728

SCREW,Flat Hd W/Collar, M6 x 22mm, Cl 8.8

4шт.
