Запчасти Case IH PUMA 185 CVT (50.200.AB[05]) - VAR - 391130, 758000 - AIR CONDITIONING, HOSE, COMPONENTS (50) - CAB CLIMATE CONTROL

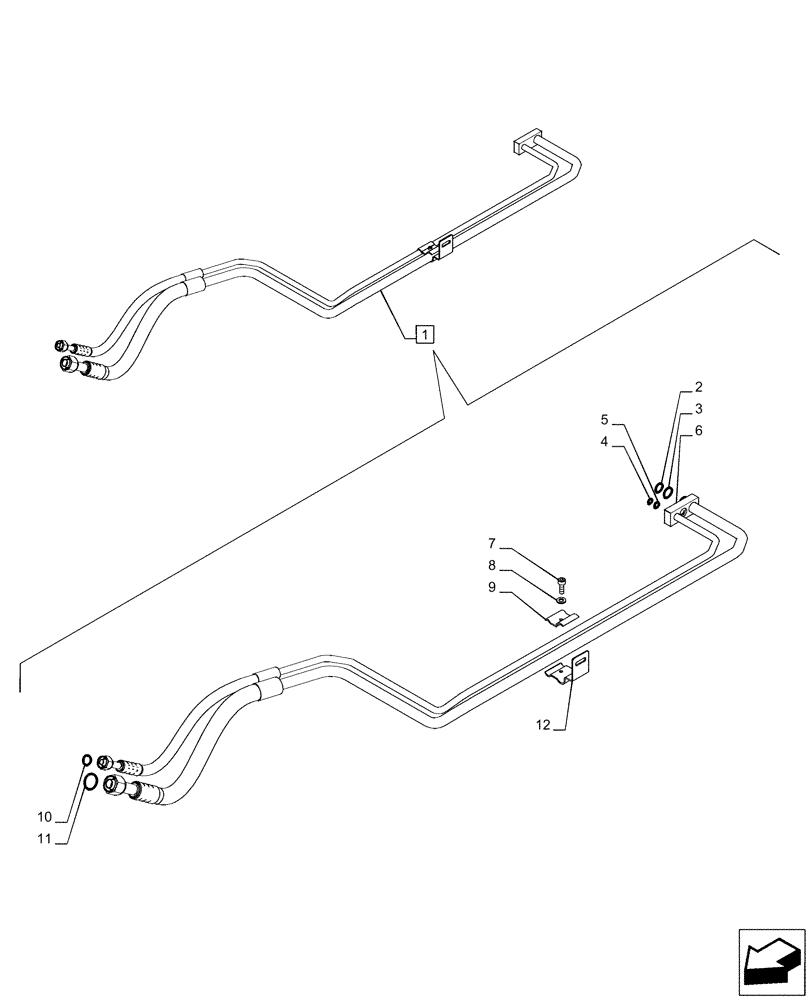

Схема запчастей Case IH PUMA 185 CVT - (50.200.AB[05]) - VAR - 391130, 758000 - AIR CONDITIONING, HOSE, COMPONENTS (50) - CAB CLIMATE CONTROL
6
2
7
9
3
8
12
4
10
5
1
11

Артикул

Название

Примечание

Количество

1

47610427

TUBE

ASSY, Incl 2 - 12

1шт.

2

82007848

O-RING,2.4mm Thk x 13.4mm ID

1шт.

3

10319983

O-RING,1.6mm Thk x 16.1mm ID

16.1 x 1.6

1шт.

4

82007847

O-RING,1.8mm Thk x 6.7mm ID

1шт.

5

10318883

O-RING,8.1mm ID x 1.6mm Width

1шт.

6

NSS

NOT SOLD SEPARAT

Hose, A/C, Incl in 1

1шт.

7

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

1шт.

8

10615279

LOCK WASHER,M4, Serr

1шт.

9

87302953

CLAMP,4.5mm HD

1шт.

10

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

11

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

12

87496501

BRACKET

1шт.

Выбрано товаров: 12
