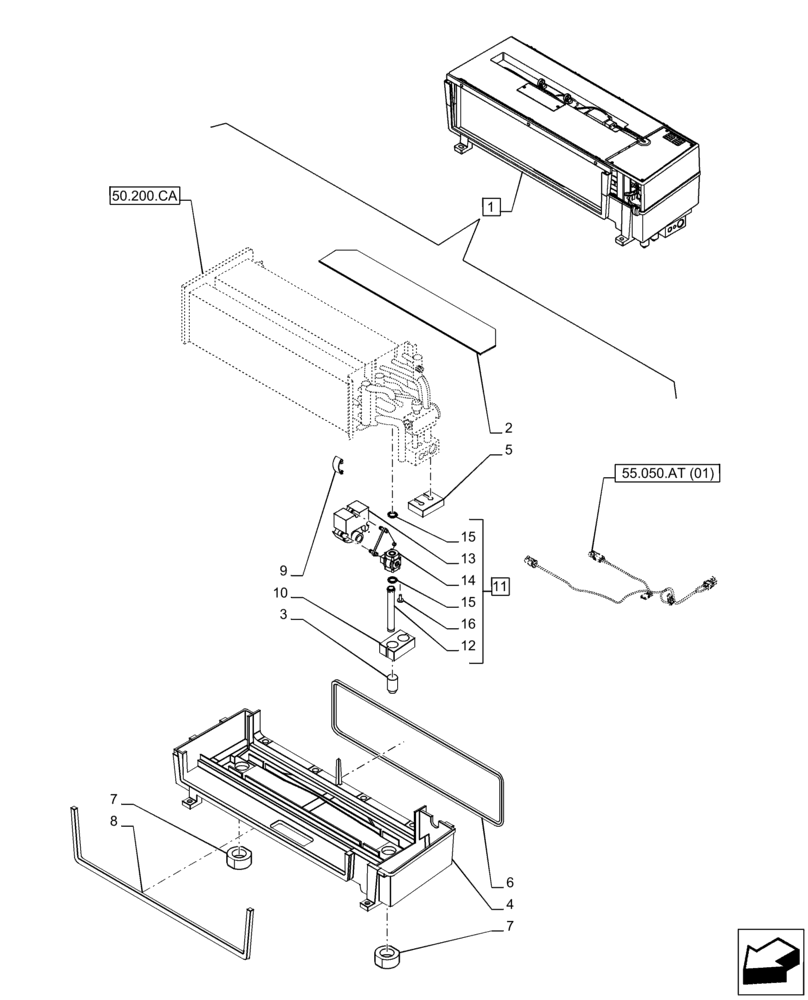

Запчасти Case IH PUMA 185 CVT (50.100.AP[03]) - VAR - 391176, 758255, 758257 - AIR CONDITIONER, COMPONENTS (50) - CAB CLIMATE CONTROL

1

47490413

AIR CONDITIONER

Mechanical, ASSY, Incl 2 - 16

1шт.

2

82033453

PLATE

1шт.

3

82033261

CAP,5/8"

1шт.

4

82033005

HOUSING

1шт.

5

82028953

SEAL

Evaporator

1шт.

6

82024750

SEAL,1235mm L x 5mm Thk

Blower

1шт.

7

82028942

SEAL,32mm ID x 48mm OD x20mm Thk

Drain

2шт.

8

82023564

SEAL,765.6mm L x 8mm Thk

Housing

1шт.

9

82024392

CLIP,7mm W

4шт.

10

82028943

SEAL,20mm Thk

1шт.

11

87540537

SHUT-OFF VALVE

ASSY, Incl 12 - 16

1шт.

12

87540534

PIPE

1шт.

13

87541625

ACTUATOR

1шт.

14

NSS

NOT SOLD SEPARAT

Valve, Incl in 11

1шт.

15

82037703

O-RING,3.17mm Thk x 15.88mm ID

2шт.

16

82037676

SCREW,Torx, Pan HD, 10 x 7

8шт.
