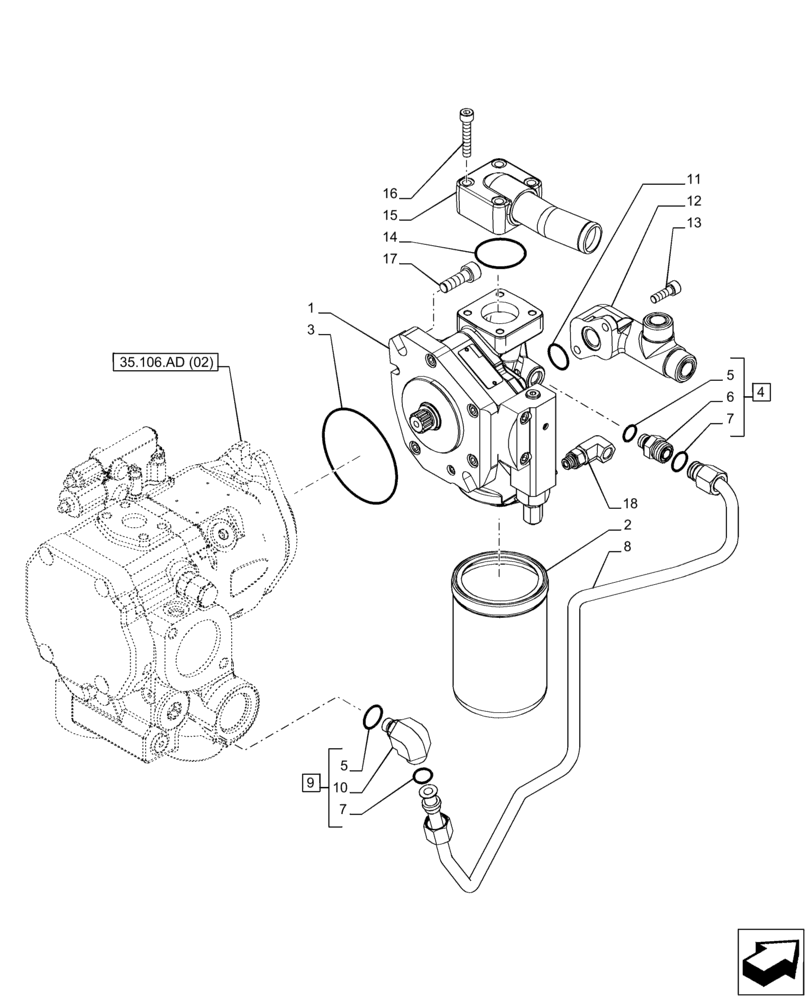

Запчасти Case IH PUMA 185 CVT (35.322.AM) - VAR - 391161, 758056 - HYDRAULIC PUMP, VANE, CVT (35) - HYDRAULIC SYSTEMS

1

87738887

PUMP,45 CC

(45 CC/Rev)

1шт.

1

87738887R

REMAN-HYD PUMP

(45 CC/Rev)

1шт.

1

87738887C

CORE-HYDRAULIC PUMP

1шт.

2

87588814

HYDRAULIC OIL FILTER,151mm L

on Vane Pump, 151mm

4шт.

3

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

4

86579674

HYD CONNECTOR,13/16"-16 ORFS x M14 x 1.5 ORB

ASSY, Incl 5 (Qty 1), 7 (Qty 1), 6

1шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

7

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

8

84342583

HYD TUBE

1шт.

9

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 5 (Qty 1), 7 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 9

1шт.

11

274727

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

12

84479353

FLANGE

1шт.

13

86625220

HEX SOC SCREW,M8 x 25mm, Cl 8.8

1шт.

14

14454980

O-RING,0.07" Thk x 1.864" ID, -32, Cl 5, 75 Duro

1шт.

15

87608113

TUBE

1шт.

16

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

1шт.

17

14311824

SCREW

1шт.

18

84122478

ELBOW,M12 x 1.5 x 45mm

1шт.
