Запчасти Case IH PUMA 185 CVT (35.300.AJ[02]) - VAR - 391161, 758056 - OIL FILTER, LINE, CVT (35) - HYDRAULIC SYSTEMS

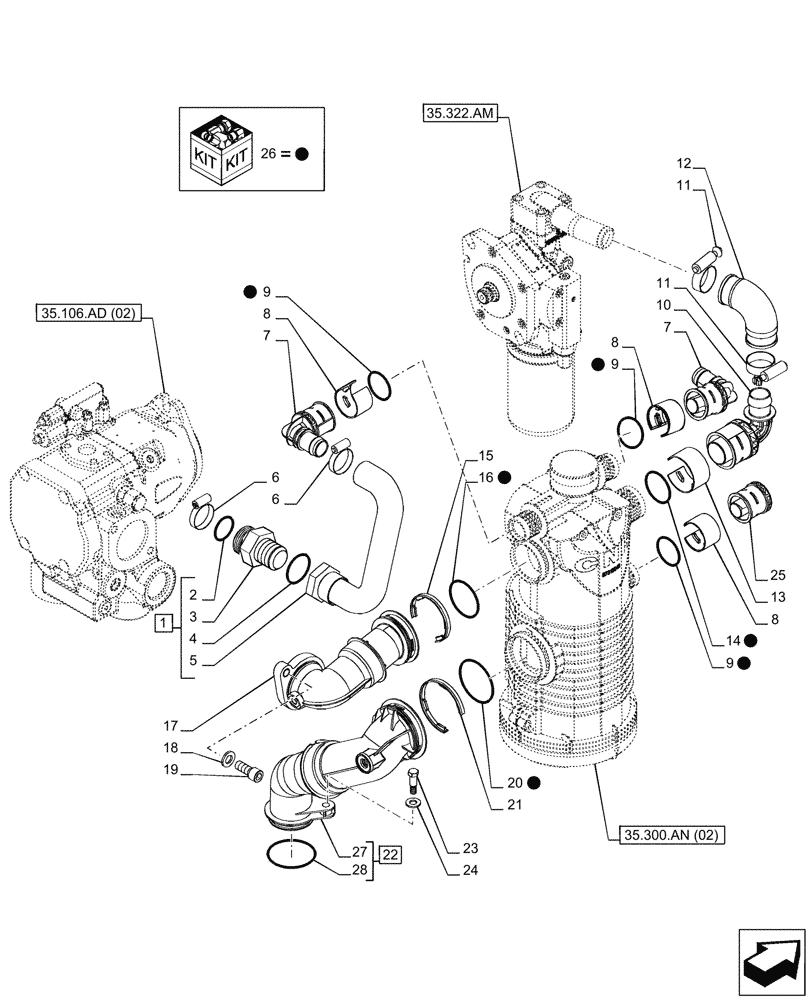

Схема запчастей Case IH PUMA 185 CVT - (35.300.AJ[02]) - VAR - 391161, 758056 - OIL FILTER, LINE, CVT (35) - HYDRAULIC SYSTEMS
35.106.ad (02)
28
11
22
14
3
26
25
26
5
13
7
21
9
26
24
27
11
4
10
15
9
26
20
26
12
1
8
18
6
19
26
2
26
7
9
8
16
6
26
17
23
8
35.322.am
35.300.an (02)

Артикул

Название

Примечание

Количество

1

84418119

HOSE,25.4mm ID x 327.1mm L

G Port, ASSY, Incl 2 - 5

1шт.

2

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

3

84492931

NIPPLE

1шт.

4

14458080

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

6

13001690

HOSE CLAMP,Worm Gear, 30mm/45mm x 9mm W, CST, ZND

2шт.

7

87608358

ELBOW,90 Deg, 22mm ID

2шт.

8

84121298

SNAP RING,30mm Thk, Ext

3шт.

9

87381700

O-RING,25.50mm ID x 2.53mm

3шт.

10

87614900

ELBOW,57mm OD x 32.9/27mm ID x 88.3mm

1шт.

11

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

2шт.

12

87608355

ELBOW,31mm OD x 45mm ID x 60/65mm

1шт.

13

87330755

STOP DEVICE

1шт.

14

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

15

87381696

SNAP RING,8mm Thk, Ext

1шт.

16

87381702

O-RING,53.5mm ID x 2.387mm OD x 3.53mm

1шт.

17

87614899

ELBOW

Suction

1шт.

18

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

19

14422021

HEX SOC SCREW,M12 x 30mm, Cl 8.8

2шт.

20

87381699

O-RING,63.50mm ID x 3.53mm

1шт.

21

87381695

CIRCLIP,8mm Thk

1шт.

22

87395840

TUBE

Suction, ASSY, Incl 27, 28

1шт.

23

87687675

BOLT,M8 x 1.25 x 32mm, Cl 8.8

1шт.

24

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

25

87330798

PLUG,46mm ID

Oring

1шт.

26

87705156

SEAL KIT

1шт.

27

87705158

GASKET KIT

1шт.

28

NSS

NOT SOLD SEPARAT

Tube, Incl in 22

1шт.

Выбрано товаров: 28
