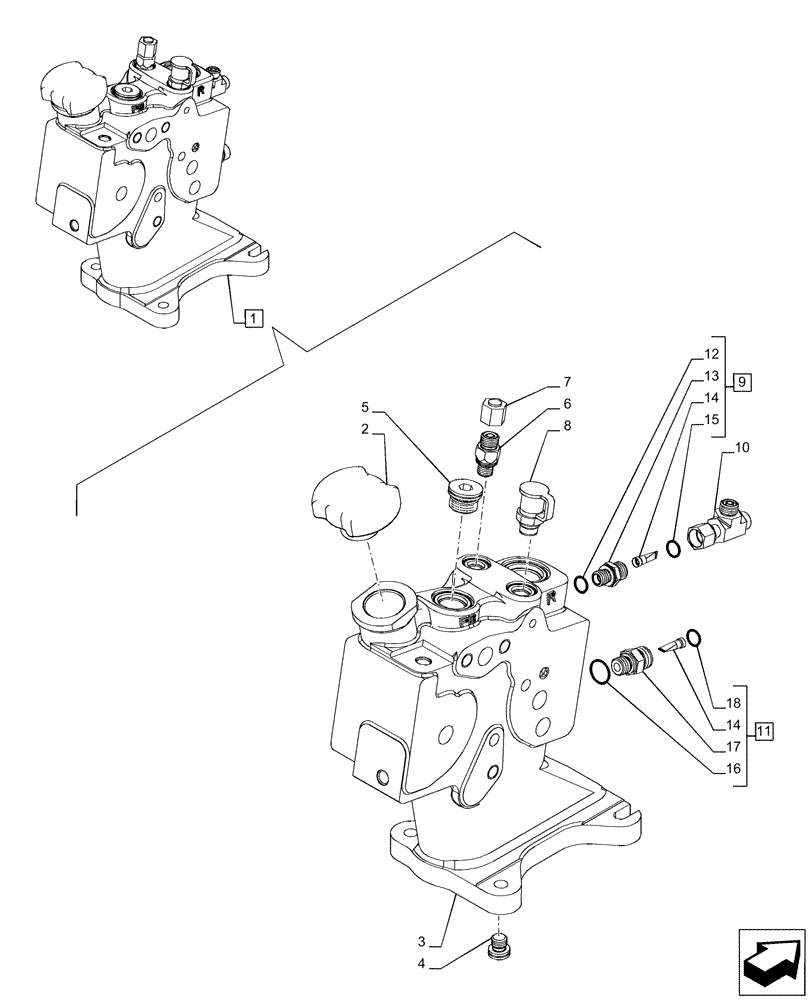

Запчасти Case IH PUMA 185 CVT (35.204.BE[15]) - VAR - 391165, 758059, 758060, 758061 - CONTROL VALVE SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87555868

MANIFOLD VALVE

ASSY, Incl 2 - 11

1шт.

2

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

4

86598043

PLUG,M12 x 1.5 ORB

1шт.

5

221579A1

PLUG,M22 x 1.5 ORB

1шт.

6

87551023

CHECK VALVE

1шт.

7

87668376

CAP,9/16"-18 Inch THD

1шт.

8

178889A1

DIAGNOSTIC COUPLER

Diagnostic

1шт.

9

84174239

ORIFICE,Hex, M12 x 1.5 x 28.5mm L

ASSY, Incl 12 - 14 (Q.ty 1), 15

1шт.

10

83961945

TEE,9/16"-18 ORFS x 9/16"-18 Fem Sw Run

1шт.

11

334923A1

HYD CONNECTOR,M14 x 1.5 ORB x 11/16" - 16 ORFS

ASSY, Incl 14 (Q.ty 1), 16, 17, 18

1шт.

12

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

14

NSS

NOT SOLD SEPARAT

Screen, Incl in 9 and 11

2шт.

15

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

16

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

17

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

18

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
