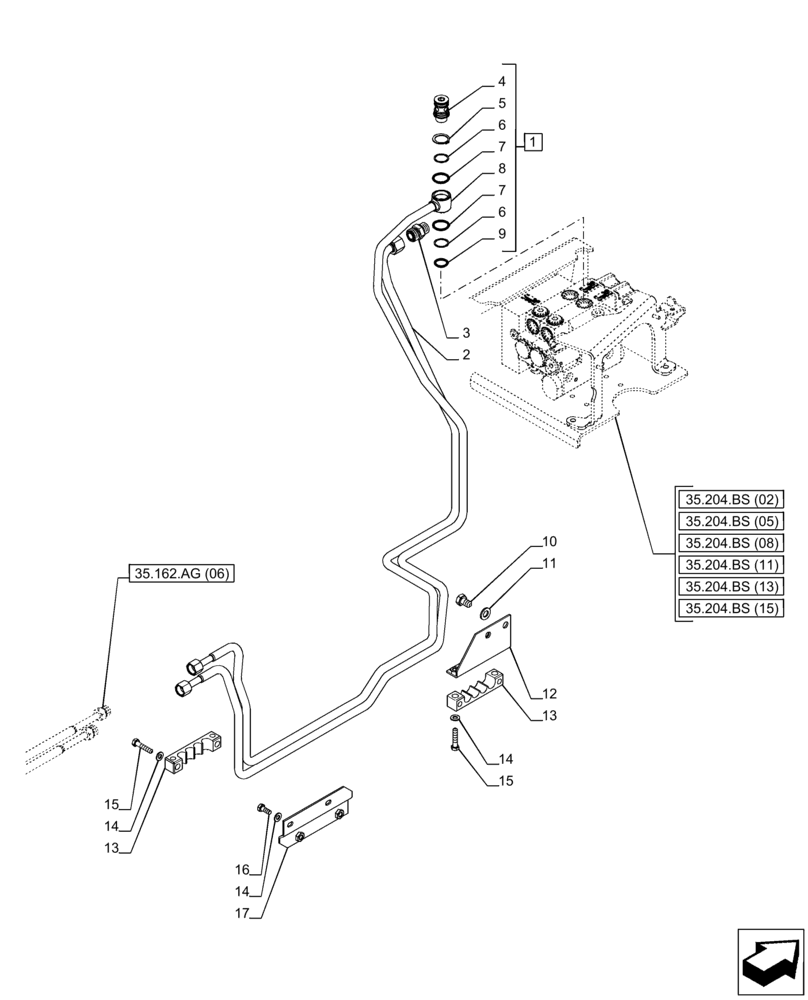

Запчасти Case IH PUMA 185 CVT (35.162.AG[11]) - VAR - 758092, 758093 - 3 POINT HITCH, FRONT, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

47526666

PIPE

Raise, ASSY, Incl 4 - 9

1шт.

2

47526664

PIPE

Lower

1шт.

3

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

4

47530975

BANJO BOLT,M22 x 1.5

1шт.

5

300629

SNAP RING,M28, Ext

1шт.

6

47361752

RING,24.28mm ID x 28.64mm OD x 1.35mm Thk

2шт.

7

271913

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

2шт.

8

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

9

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

10

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

11

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

12

87346861

BRACKET

1шт.

13

87579043

CLAMP,4 Hoses

2шт.

14

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

15

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

16

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

17

87346863

BRACKET

1шт.
