Запчасти Case IH PUMA 185 CVT (33.350.AO[01]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), PRESSURE CONTROL VALVE (33) - BRAKES & CONTROLS

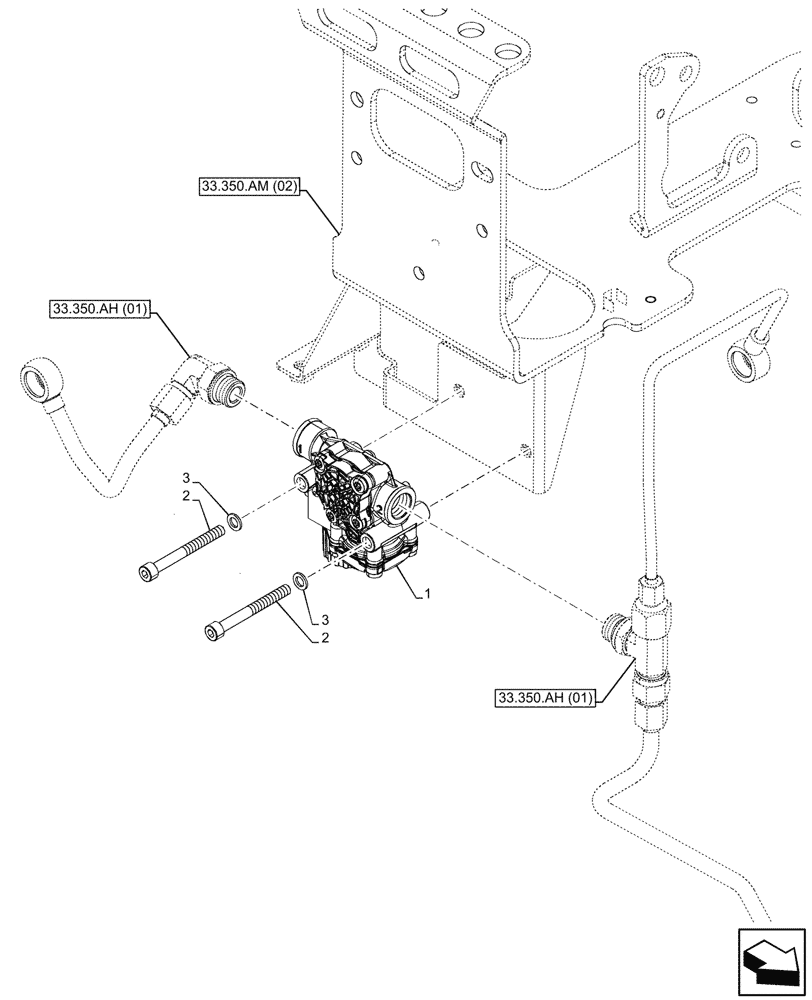

Схема запчастей Case IH PUMA 185 CVT - (33.350.AO[01]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), PRESSURE CONTROL VALVE (33) - BRAKES & CONTROLS
33.350.am (02)
2
3
2
3
1
33.350.ah (01)
33.350.ah (01)

Артикул

Название

Примечание

Количество

1

47480913

VALVE, PRESSURE CONT

1шт.

2

14359421

HEX SOC SCREW,M8 x 75mm, Cl 8.8

2шт.

3

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 3
