Запчасти Case IH PUMA 185 CVT (33.350.AH[04]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), LINE (33) - BRAKES & CONTROLS

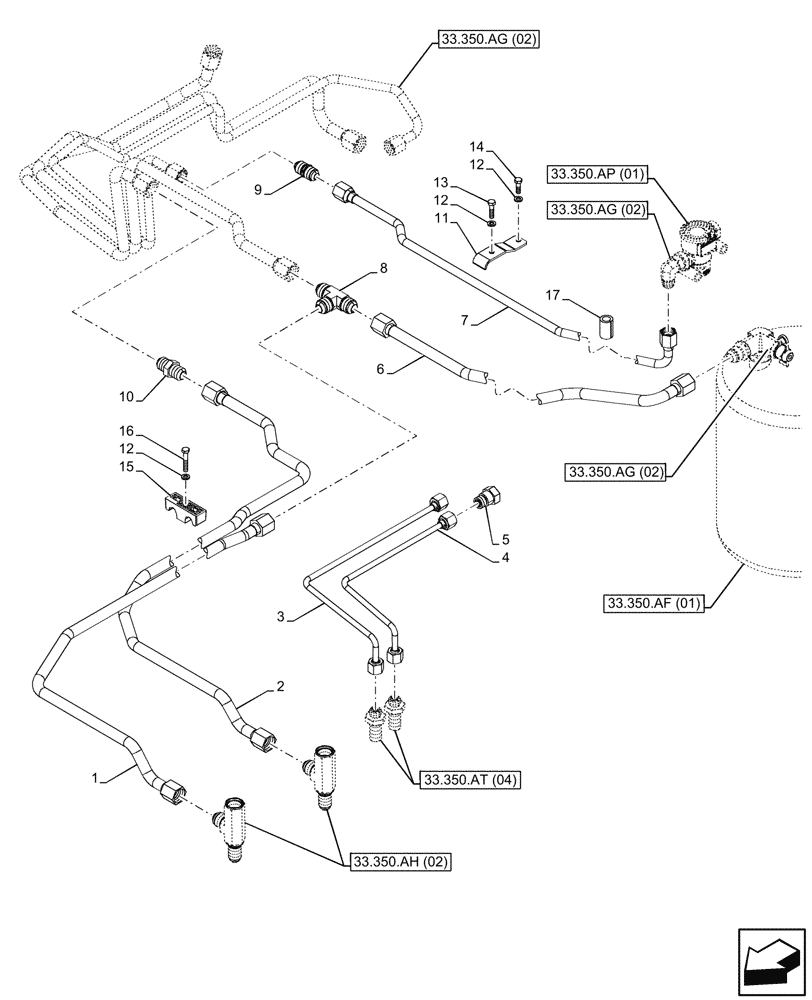

Схема запчастей Case IH PUMA 185 CVT - (33.350.AH[04]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), LINE (33) - BRAKES & CONTROLS
33.350.ag (02)
11
12
10
1
8
17
15
13
12
14
9
3
16
7
2
12
5
6
4
33.350.at (04)
33.350.ah (02)
33.350.ap (01)
33.350.af (01)
33.350.ag (02)
33.350.ag (02)

Артикул

Название

Примечание

Количество

1

47365744

BRAKE LINE

from EBM to Reservoir

1шт.

2

47365747

BRAKE LINE

from EBM to Pressure Reducer

1шт.

3

84521795

TUBE

from EBM to RH Brake

1шт.

4

84521793

BRAKE LINE

from EBM to LH Brake

1шт.

5

87582905

ORIFICE

1шт.

6

47619000

BRAKE LINE

From EBM to LH Reservoir

1шт.

7

47468794

TUBE

Servo Control Valve

1шт.

8

16985

TEE,7/8"-14, 37 Degree

1шт.

9

128822

UNION,3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

10

128823

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

11

47370888

BRACKET

1шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

13

86639038

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

1шт.

14

86505530

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

1шт.

15

87571442

BRACKET

1шт.

16

86579344

BOLT,Hex, M6 x 35mm, Cl 10.9

1шт.

17

84530476

SPACER

1шт.

Выбрано товаров: 17
