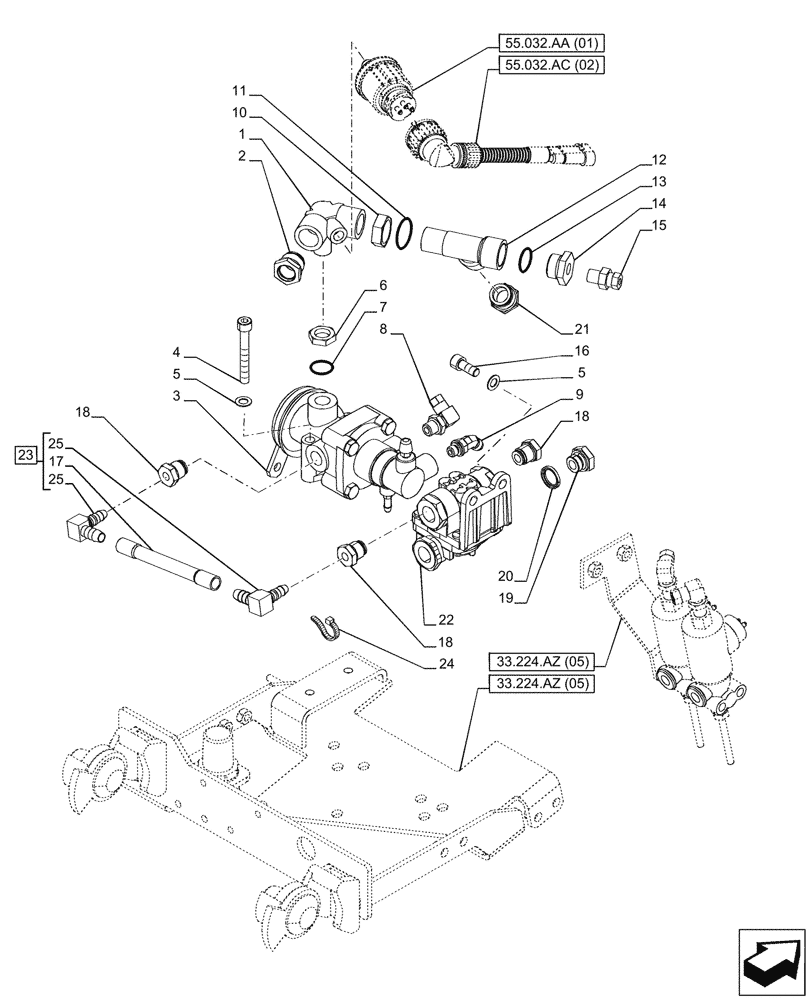

Запчасти Case IH PUMA 185 CVT (33.224.AZ[06]) - VAR - 758041, 758042 - TRAILER BRAKE VALVE (33) - BRAKES & CONTROLS

1

87588083

HYD CONNECTOR,M16 x 1.5

1шт.

2

82014913

PLUG,M22 x 1.5 x 9mm L

1шт.

3

82030571

TRAILER BRAKE VALVE

1шт.

4

14308934

HEX SOC SCREW,M8 x 1.25 x 60mm, Cl 10.9

2шт.

5

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

4шт.

6

82019796

LOCK NUT

1шт.

7

82019797

O-RING,2.5mm Thk x 14mm ID

1шт.

8

87678126

ELBOW,Hex, M12 x 1.4 x 28mm

1шт.

9

87588084

HYD CONNECTOR,M10 x 1

1шт.

10

82039004

LOCK NUT

1шт.

11

82039003

O-RING

1шт.

12

87714794

HYD CONNECTOR,M22 x 1.5

1шт.

13

82019799

O-RING

1шт.

14

87570885

ADAPTER

1шт.

15

82006828

ADAPTER

1шт.

16

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

17

NSS

NOT SOLD SEPARAT

Incl in 23

1шт.

18

87588079

HYD CONNECTOR,M16 x 1.5

4шт.

19

84157696

HYD CONNECTOR,MG12 / M16 x 1.5mm

M16

1шт.

20

86010343

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

1шт.

21

82034157

ADAPTER

1шт.

22

84157669

VALVE

1шт.

23

84157672

FLEXIBLE HOSE,12.00mm OD x 123.00mm

ASSY, Incl 17, 25

1шт.

24

83933061

STRAP

1шт.

25

87588080

90 ELBOW,NG8 x 12mm D

2шт.
