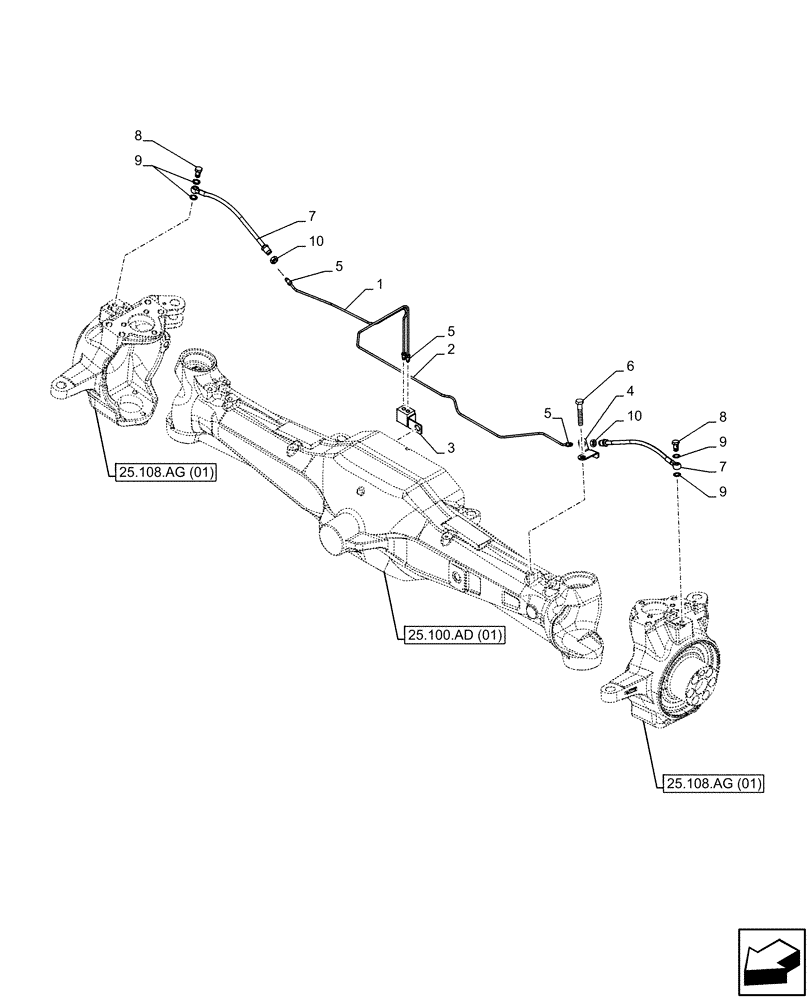

Запчасти Case IH PUMA 185 CVT (33.204.AG[02]) - VAR - 758048 - FRONT, BRAKE LINE (33) - BRAKES & CONTROLS

1

87592861

RIGID TUBE,4.76 mm ID

1шт.

2

87730130

RIGID TUBE

1шт.

3

87333539

SUPPORT

1шт.

4

87592752

BRACKET

1шт.

5

14689011

HYD CONNECTOR

4шт.

6

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

7

47518869

FLEXIBLE HOSE

2шт.

8

87736839

BOLT

2шт.

9

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

4шт.

10

10718111

THIN NUT,Thin, M16 x1.00mm, 8.00mm High, Cl 04

2шт.
