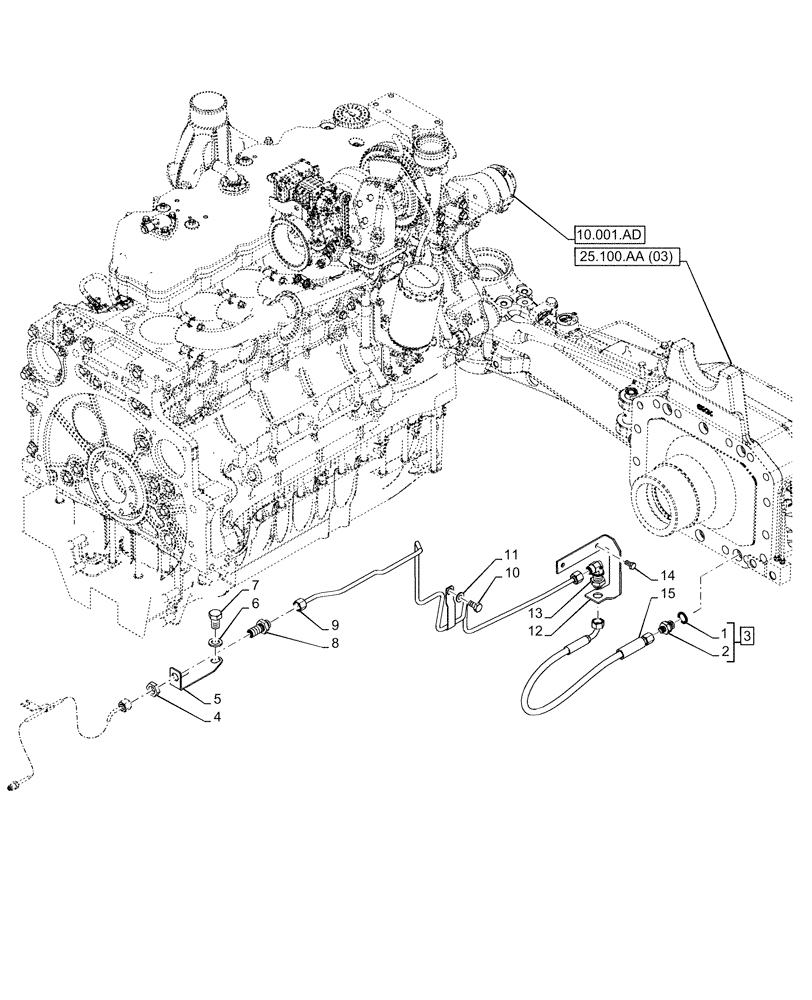

Запчасти Case IH PUMA 185 CVT (33.204.AG[02]) - VAR - 337416 - FRONT AXLE, BRAKE LINE (33) - BRAKES & CONTROLS

1

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

2

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

3

82015298

HYD CONNECTOR,1/2"-20 - M18 x 1.5

HYD CONNECTOR ASSY, Incl 2,1

1шт.

4

87010704

BHD LOCK NUT,11/16"-16

1шт.

5

47422027

BRACKET

1шт.

6

10520201

WASHER,16.4mm ID x 28mm OD x 3mm Thk

1шт.

7

86639032

BOLT,Hex, M16 x 25mm, Cl 10.9, Full Thd

1шт.

8

86978770

UNION,11/16"-6, ORFS

ASSY, Incl 19, 20

1шт.

9

47421632

PIPE

Front Axle Brakes

1шт.

10

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

1шт.

11

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

12

84606637

BRACKET

1шт.

13

87326942

HYD CONNECTOR

1шт.

14

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

15

87318011

HOSE

1шт.
