Запчасти Case IH PUMA 185 CVT (33.204.AB[03]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, BLEED SCREW (33) - BRAKES & CONTROLS

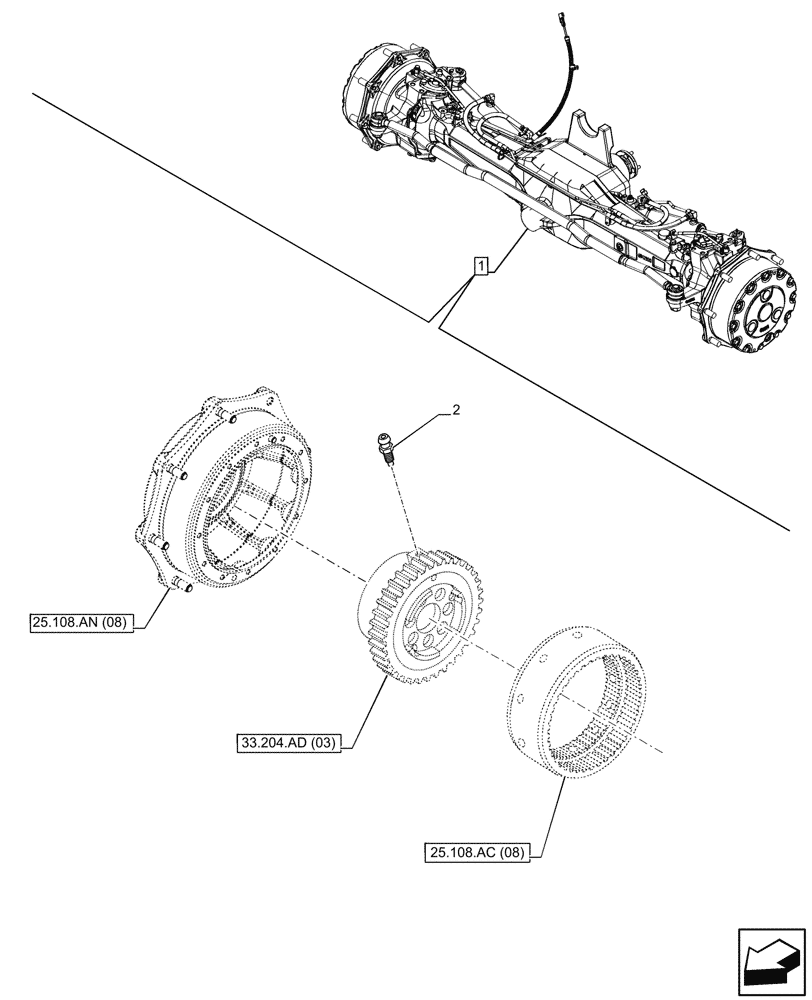

Схема запчастей Case IH PUMA 185 CVT - (33.204.AB[03]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, BLEED SCREW (33) - BRAKES & CONTROLS
25.108.ac (08)
33.204.ad (03)
25.108.an (08)
1
2

Артикул

Название

Примечание

Количество

1

84381243

LIVE FRONT AXLE

ASSY, 4WD Suspended W/ Brake, Incl 2

1шт.

See Axle Components also in Figure 25.100.AD (09), 25.102.AD (10), 25.108.AA (08), 25.108.AB (03), 25.108.AC (08), 25.108.AG (15), 25.108.AG (16), 25.108.AN (08), 33.204.AD (03), 33.204.AG (05), 41.106.AG (09), 41.216.AN (10), 41.216.AV (16), 55.047.AA (09)

1шт.

2

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

ASSY, Incl 3, 4

1шт.

Выбрано товаров: 3
