Запчасти Case IH PUMA 185 CVT (33.202.AP[08]) - VAR - 758042 - BRAKE LINE, CVT (33) - BRAKES & CONTROLS

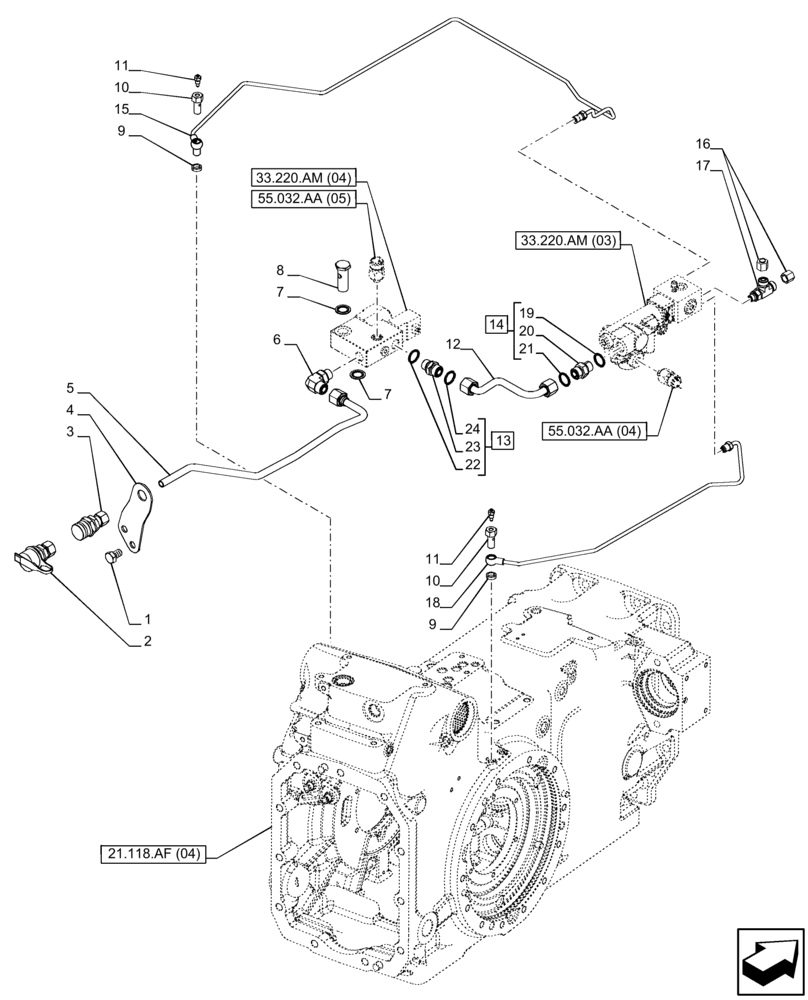

Схема запчастей Case IH PUMA 185 CVT - (33.202.AP[08]) - VAR - 758042 - BRAKE LINE, CVT (33) - BRAKES & CONTROLS
7
12
1
3
11
4
15
10
14
55.032.aa (05)
17
9
22
16
10
6
21
23
13
33.220.am (03)
5
33.220.am (04)
21.118.af (04)
11
18
20
7
9
8
19
2
24
55.032.aa (04)

Артикул

Название

Примечание

Количество

1

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

2

44015354

QUICK MALE COUPLING

1шт.

3

5144514

HYDRAULIC VALVE

1шт.

4

5196322

BRACKET

1шт.

5

84554422

HYD TUBE

Trailer Brake Valve

1шт.

6

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

1шт.

7

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

8

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

9

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

10

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

11

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

12

87608337

PIPE

Block

1шт.

13

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

ASSY, Incl 22 - 24

1шт.

14

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 19 - 21

1шт.

15

84326329

PIPE

Brake LH

1шт.

16

87668376

CAP,9/16"-18 Inch THD

2шт.

17

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

1шт.

18

87608326

BRAKE LINE

Brake RH

1шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

21

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

22

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

23

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

1шт.

24

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

Выбрано товаров: 24
