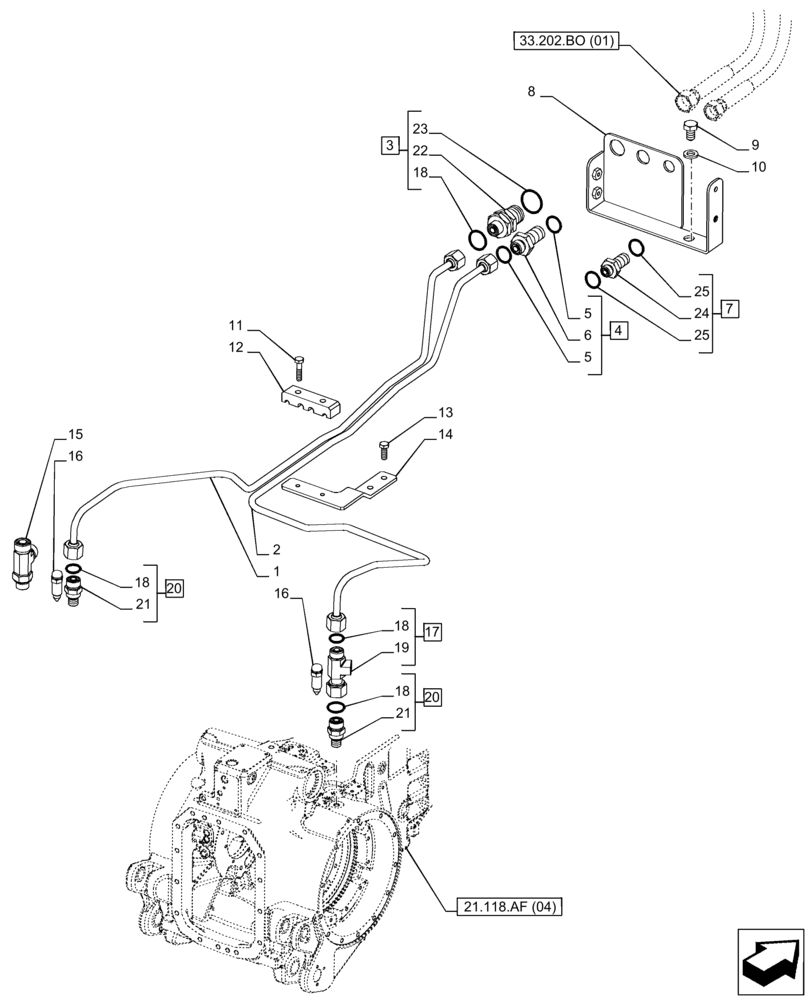

Запчасти Case IH PUMA 185 CVT (33.202.AP[02]) - VAR - 391231, 758270, 758271, 758272, 758273 - BRAKE LINE, CVT (33) - BRAKES & CONTROLS

1

87718496

TUBE

LH

1шт.

2

87718494

TUBE

RH

1шт.

3

87711900

HYD CONNECTOR

ASSY, I ncl 18 (Q.ty 1), 22, 23

1шт.

4

86978770

UNION,11/16"-6, ORFS

ASSY, Incl 5, 6

1шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

6

NSS

NOT SOLD SEPARAT

Union, Incl in 4

1шт.

7

86639059

UNION,9/16"-18 ORFS, Blkd

ASSY, Incl 24, 25

1шт.

8

87608150

SUPPORT

1шт.

9

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

10

10520005

WASHER,12.2mm ID x 22mm OD x 3mm Thk

12.2 x 22 x 3

1шт.

11

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

12

87724327

CLAMP BRACKET

1шт.

13

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

14

87724326

BRACKET

1шт.

15

87315465

HYD CONNECTOR,13/16"-16 ORFS x 13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

16

5155682

BLEED SCREW,Bleeder, M12 x 1.25 x 33mm

2шт.

17

87681989

HYD CONNECTOR,11/16"-16 x M12 x 1 x 11/16"-16

ASSY, Incl 18 (Q.ty 1), 19

1шт.

18

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

4шт.

19

NSS

NOT SOLD SEPARAT

T Connector, Incl in 17

1шт.

20

47131549

FITTING,M12 x 1.5

ASSY, Incl 18 (Q.ty 2), 21

2шт.

21

NSS

NOT SOLD SEPARAT

Connector, Incl in 20

2шт.

22

NSS

NOT SOLD SEPARAT

1шт.

23

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

24

NSS

NOT SOLD SEPARAT

1шт.

25

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.
