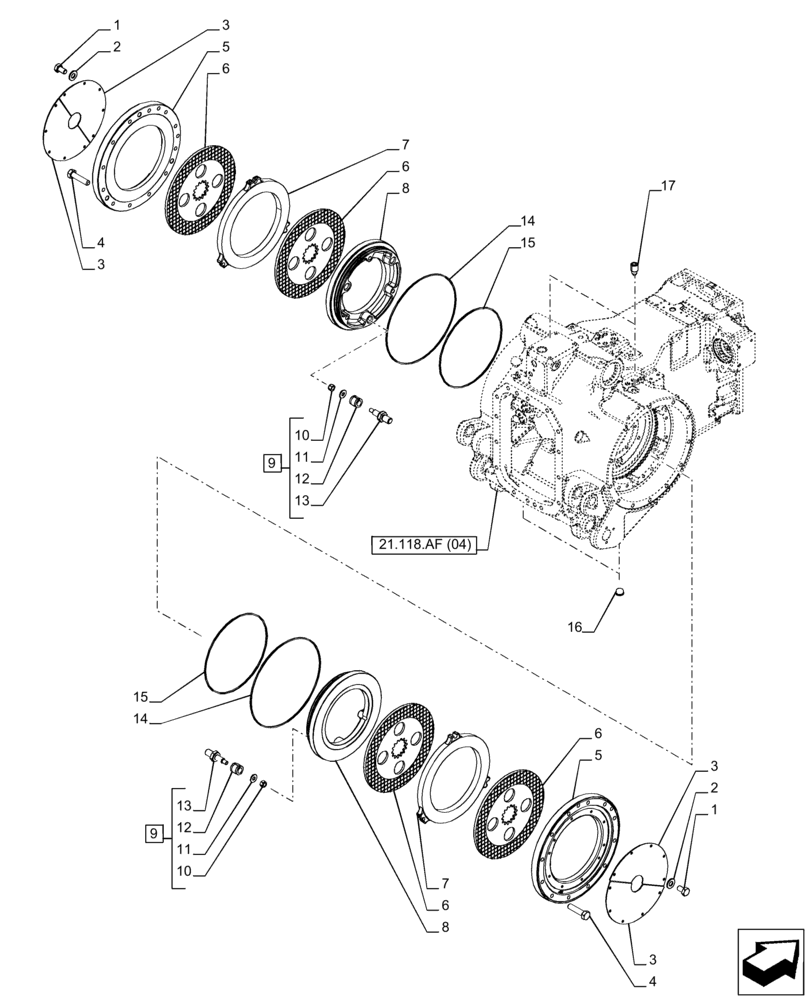

Запчасти Case IH PUMA 185 CVT (33.202.AK[04]) - VAR - 758204 - TRANSMISSION, BRAKE DISC (33) - BRAKES & CONTROLS

1

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

20шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

20шт.

3

87740014

COVER

4шт.

4

14274924

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

24шт.

5

87743516

BRAKE DISC

2шт.

6

84329060

BRAKE DISC,60mm ID x 327mm OD x 9.6mm Thk

4шт.

7

87731858

BRAKE DISC

2шт.

8

5195093

PISTON

2шт.

9

84172140

PIN

ASSY, Incl 10 - 13

6шт.

10

9628098

NUT,M8 x 1.25, Cl 10

1шт.

11

84177978

WASHER,8.2mm ID x 20mm OD x 2mm Thk

1шт.

12

84172142

BUSHING,13.3mm ID x 20mm OD x 21.9mm L

1шт.

13

84172141

PIN,22mm OD x 64mm L

1шт.

14

5165512

SEAL,Square, 3.4mm Thk x 329.8mm ID, 80 Duro

Outer

2шт.

15

5195253

SEAL,Square, 3.4mm Thk x 294.1mm ID, 80 Duro

Inner

2шт.

16

5171793

BOOT

2шт.

17

5152383

DRAIN PLUG,M12 x 1.25 x 24mm

2шт.
