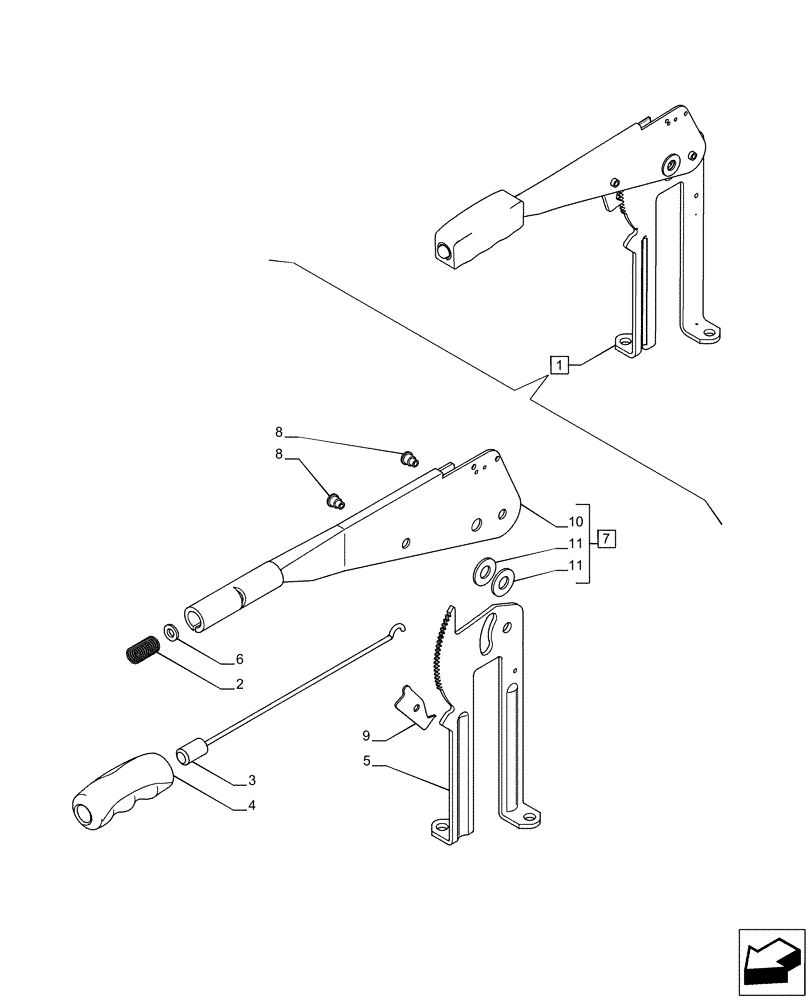

Запчасти Case IH PUMA 185 CVT (33.110.AJ[04]) - VAR - 391148, 758034 - HAND BRAKE, LEVER , COMPONENTS (33) - BRAKES & CONTROLS

1

84174329

BRAKE LEVER

ASSY, Incl 2 - 11

1шт.

2

84199076

SPRING,11.25mm OD x 44.5mm L

1шт.

3

81870377

BUTTON

1шт.

4

81866090

HANDLE GRIP

1шт.

5

84174325

SUPPORT

1шт.

6

81866092

WASHER,5.5mm ID x 13.4mm OD x 1.2mm Thk

1шт.

7

84174328

BRAKE LEVER

ASSY, Incl 10, 11

1шт.

8

82000812

PIN,7.8mm OD x 7.4mm L

2шт.

9

82863025

PAWL,4.5mm Thk

1шт.

10

NSS

NOT SOLD SEPARAT

Lever, Incl in 7

1шт.

11

81866089

WASHER,Flat, 12.00mm ID x 23.00mm OD x 2.00mm

2шт.
