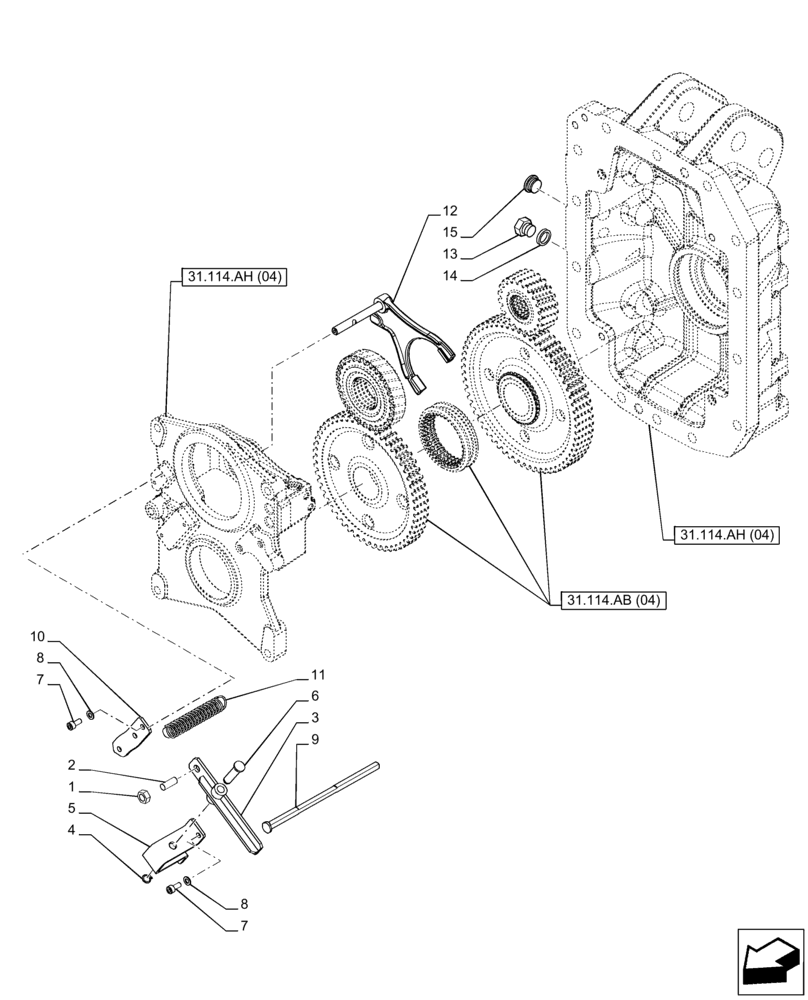

Запчасти Case IH PUMA 185 CVT (31.114.AO[04]) - VAR - 758031 - PTO 540/1000 RPM, SELECTOR (31) - IMPLEMENT POWER TAKE OFF

1

16103614

THIN NUT,Thin, M12, 1.25 Pitch, Cl 04

1шт.

2

5171363

PIN

1шт.

3

5171261

LEVER

1шт.

4

11065976

CIRCLIP,M10, Ext

1шт.

5

5179750

SUPPORT

1шт.

6

5179749

PIN,9.6mm OD x 43.5mm L

1шт.

7

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

4шт.

8

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

9

87602927

PIN,10mm OD x 209mm L

1шт.

10

87345949

SUPPORT

1шт.

11

4983677

SPRING

1шт.

12

87600402

YOKE

1шт.

13

10300814

PLUG,HEX, M18 x 1.5

1шт.

14

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

15

14328701

PLUG,M20, Tapered

1шт.
