(31.114.AH[07]) - VAR - 391141, 391145, 758025, 758028, 758031, 758032 - PTO, HOUSING, LEVEL, OIL

Запчасти Case IH PUMA 185 CVT (31.114.AH[07]) - VAR - 391141, 391145, 758025, 758028, 758031, 758032 - PTO, HOUSING, LEVEL, OIL (31) - IMPLEMENT POWER TAKE OFF

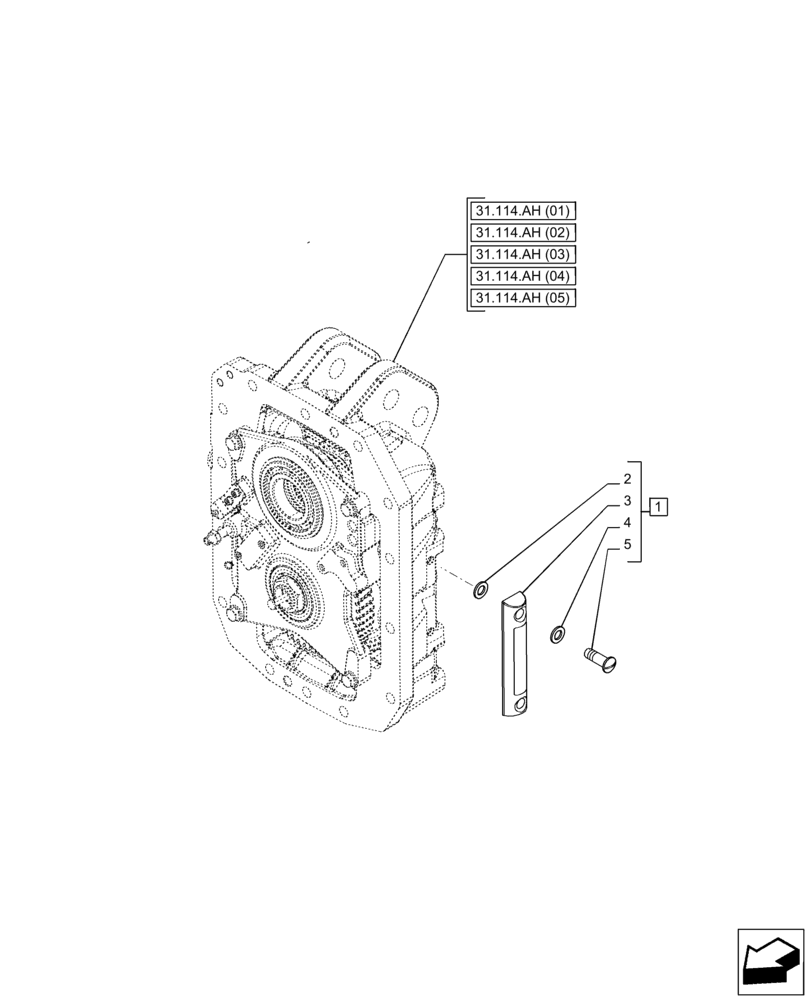

Схема запчастей Case IH PUMA 185 CVT - (31.114.AH[07]) - VAR - 391141, 391145, 758025, 758028, 758031, 758032 - PTO, HOUSING, LEVEL, OIL (31) - IMPLEMENT POWER TAKE OFF
31.114.ah (04)
31.114.ah (01)
31.114.ah (05)
3
31.114.ah (03)
1
5
2
31.114.ah (02)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87356021

LEVEL GAUGE

ASSY, Incl 2 - 5

1шт.

2

47130060

O-RING

2шт.

3

NSS

NOT SOLD SEPARAT

Level Gauge, Incl in 1

1шт.

4

87349969

RUBBER SEAL

2шт.

5

47130059

SCREW,Pan HD, M12 x 41mm

2шт.
