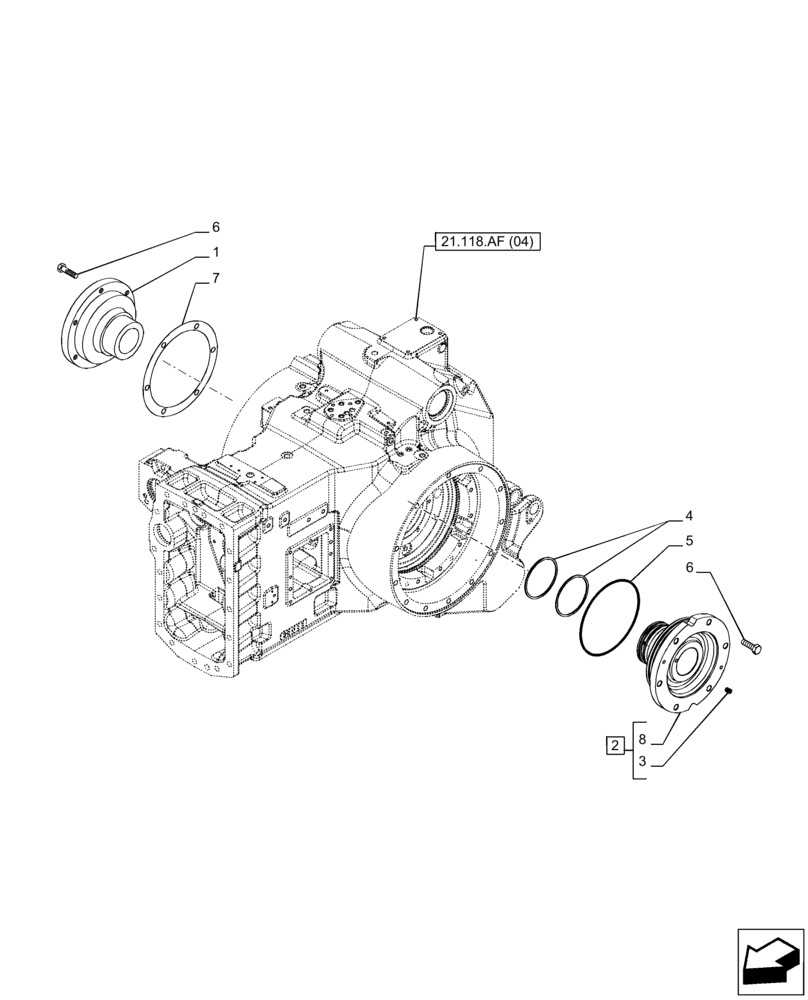

Запчасти Case IH PUMA 185 CVT (27.100.AB[02]) - VAR - 391138, 758022 - TRANSMISSION, SUPPORT, CVT (27) - REAR AXLE SYSTEM

1

5185923

SUPPORT

RH

1шт.

2

47136375

SUPPORT

LH, ASSY, Incl 3, 8

1шт.

3

14326101

PLUG,M8 x 11

1шт.

4

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

2шт.

5

14462280

O-RING,6.237" ID x 0.103" Width

1шт.

6

14233724

LOCK BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

12шт.

7

5152097

SHIM,168mm ID x 208mm OD x 0.15mm Thk

2шт.

7

5152098

SHIM,168mm ID x 208mm OD x 0.2mm Thk

2шт.

7

5152099

SHIM,168mm ID x 208mm OD x 0.5mm Thk

2шт.

8

NSS

NOT SOLD SEPARAT

Support, Incl in 2

1шт.
