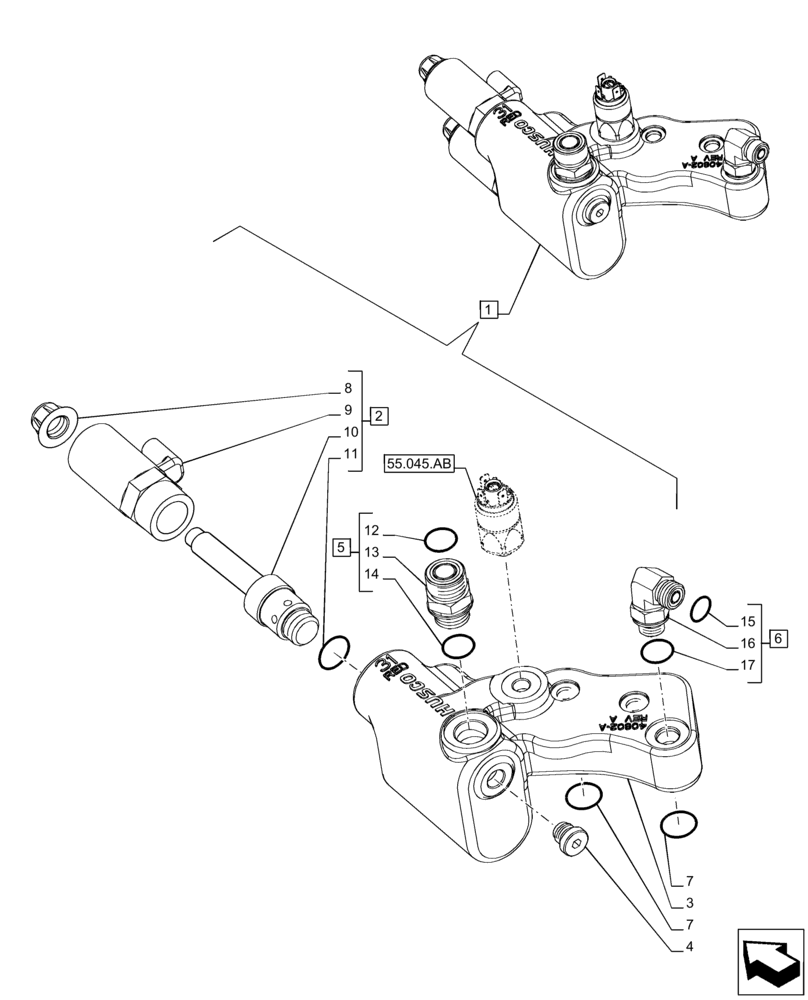

Запчасти Case IH PUMA 185 CVT (25.122.AB[04]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, CYLINDER, COMPONENTS (25) - FRONT AXLE SYSTEM

1

84486852

ELECTRO-VALVE

ASSY, Incl 2 - 7

1шт.

2

84486831

SOLENOID VALVE

ASSY, Incl 8 - 11

2шт.

3

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

5

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

ASSY, Incl 12 - 14

1шт.

6

5185050

ELBOW,M16 x 1.5 x 37mm

ASSY, Incl 15 - 17

1шт.

7

84486852

ELECTRO-VALVE

2шт.

8

87728627

SPECIAL NUT

1шт.

9

87728631

COIL

1шт.

10

NSS

NOT SOLD SEPARAT

Solenoid, Incl in 2

1шт.

11

84284791

SEAL KIT

1шт.

12

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

14

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

15

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

Elbow, Incl in 6

1шт.

17

14437885

O-RING,13.30mm ID x 2.40mm

1шт.
