(25.122.AB[03]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, CYLINDER, COMPONENTS

Запчасти Case IH PUMA 185 CVT (25.122.AB[03]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, CYLINDER, COMPONENTS (25) - FRONT AXLE SYSTEM

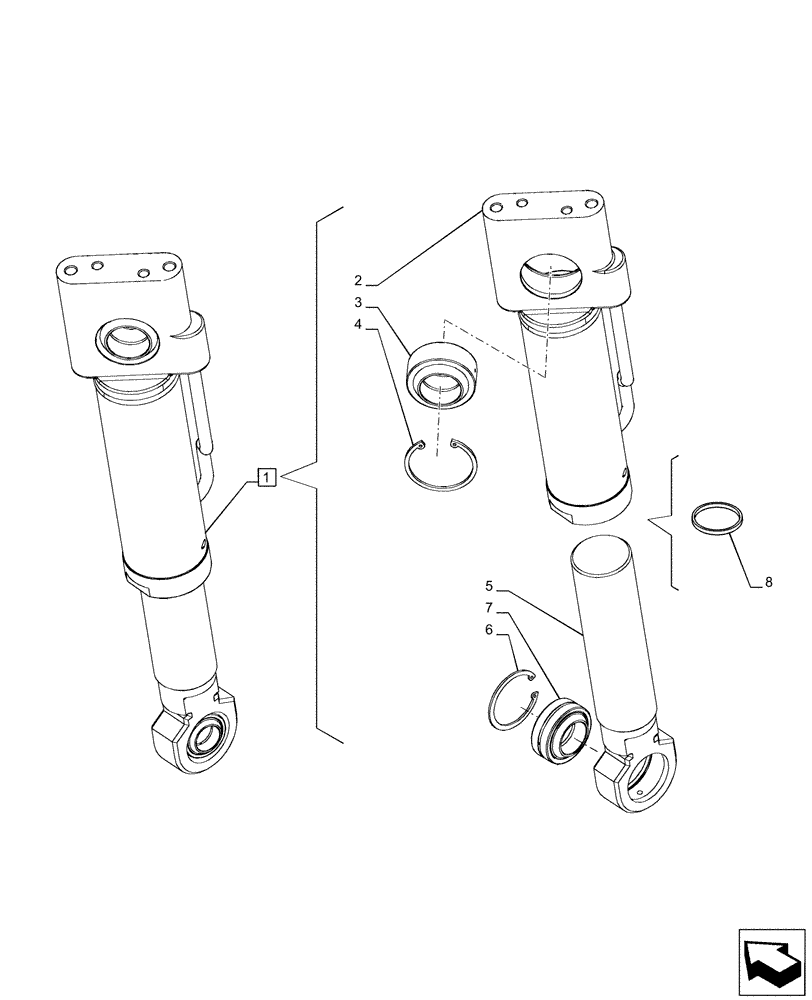

Схема запчастей Case IH PUMA 185 CVT - (25.122.AB[03]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, CYLINDER, COMPONENTS (25) - FRONT AXLE SYSTEM
8
6
3
4
1
7
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87644387

CYLINDER,60mm Rod, 146mm Stroke

ASSY, Incl 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 1

1шт.

3

87340141

SPHERICAL BEARING,40mm ID x 68mm OD x 40mm W

1шт.

4

11061376

SNAP RING,M68, Int

1шт.

5

NSS

NOT SOLD SEPARAT

Rod, Incl in 1

1шт.

6

11061076

SNAP RING,M62, Int

1шт.

7

82016695

SPHERICAL BEARING,60mm ID x 62mm OD x 35mm W

1шт.

8

87644378

SEAL KIT

1шт.
