(25.122.AB[02]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, CYLINDER, COMPONENTS

Запчасти Case IH PUMA 185 CVT (25.122.AB[02]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, CYLINDER, COMPONENTS (25) - FRONT AXLE SYSTEM

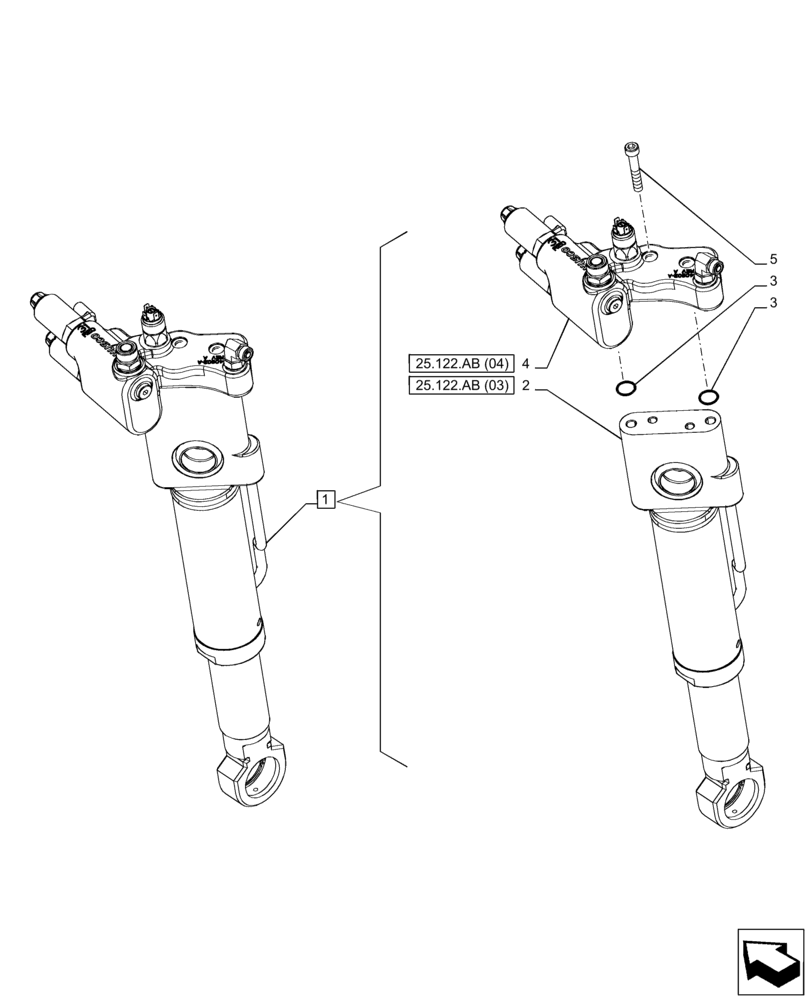

Схема запчастей Case IH PUMA 185 CVT - (25.122.AB[02]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, CYLINDER, COMPONENTS (25) - FRONT AXLE SYSTEM
2
3
5
3
1
4
25.122.ab (04)
25.122.ab (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84486825

OPERATING CYLINDER,Double Acting, 60mm Rod

ASSY, Incl 2 - 5

1шт.

2

87644387

CYLINDER,60mm Rod, 146mm Stroke

1шт.

3

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

4

84486852

ELECTRO-VALVE

1шт.

5

14420874

SCREW,M10 x 60mm, Cl 12.9

2шт.
