(25.122.AB[01]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, CYLINDER

Запчасти Case IH PUMA 185 CVT (25.122.AB[01]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, CYLINDER (25) - FRONT AXLE SYSTEM

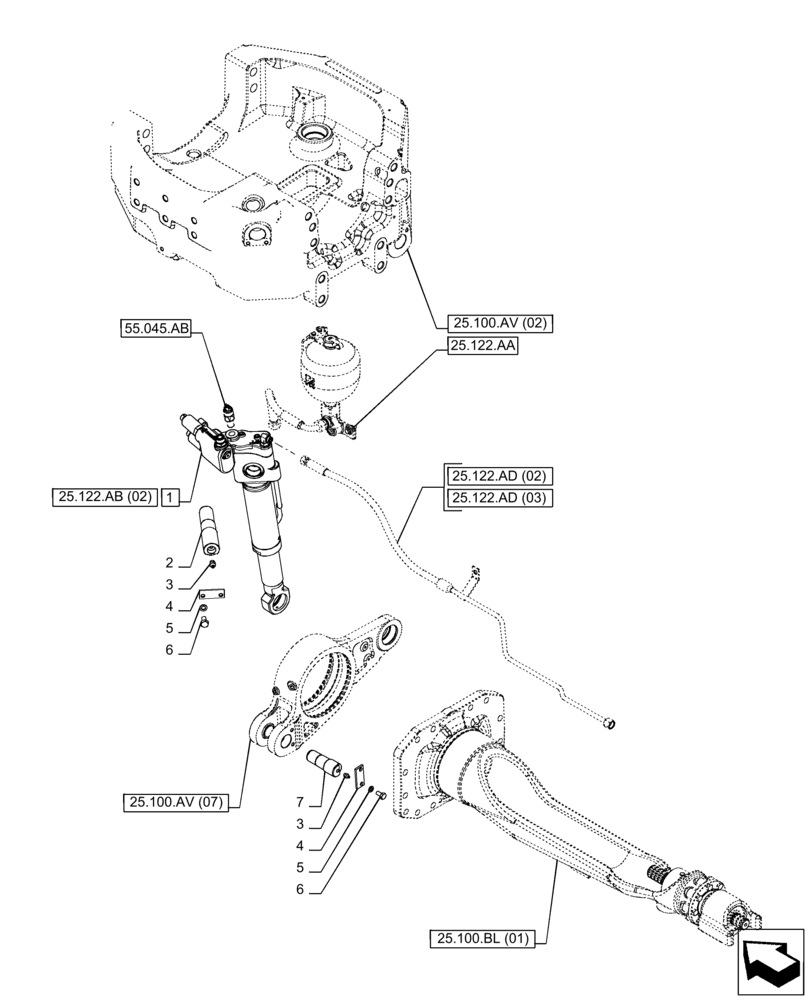

Схема запчастей Case IH PUMA 185 CVT - (25.122.AB[01]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, CYLINDER (25) - FRONT AXLE SYSTEM
5
25.100.av (02)
4
25.122.ad (02)
25.122.ab (02)
1
3
25.100.bl (01)
6
25.100.av (07)
3
7
25.122.aa
2
6
4
5
25.122.ad (03)
55.045.ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84486825

OPERATING CYLINDER,Double Acting, 60mm Rod

1шт.

2

87340133

PIN

1шт.

3

13407211

LUBE NIPPLE,M10 x 1

2шт.

4

82016870

BRACKET

2шт.

5

85700672

LOCK WASHER,M10

4шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

7

87316813

PIN,40mm OD x 110mm L

1шт.
