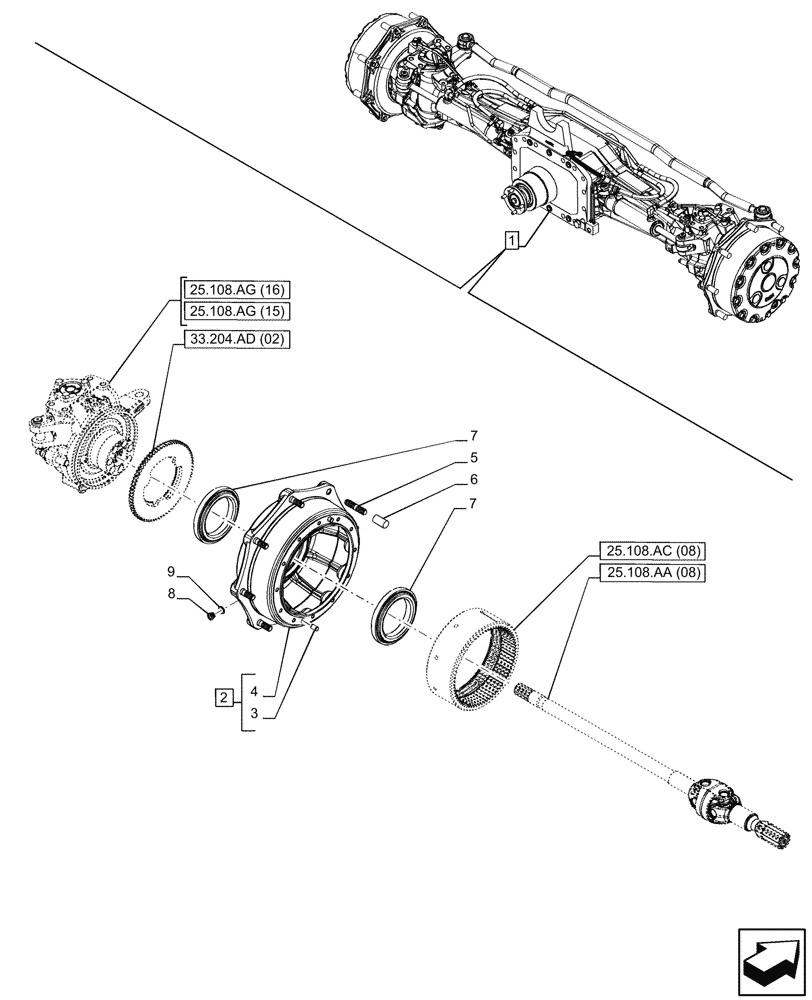

Запчасти Case IH PUMA 185 CVT (25.108.AN[08]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, WHEEL, HUB (25) - FRONT AXLE SYSTEM

1

84381243

LIVE FRONT AXLE

ASSY, 4WD Suspended W/ Brake, Incl 2 - 9

1шт.

See Axle Components also in Figure 25.100.AD (09), 25.102.AD (10), 25.108.AA (08), 25.108.AB (03), 25.108.AC (08), 25.108.AG (15), 25.108.AG (16), 33.204.AB (03), 33.204.AD (03), 33.204.AG (05), 41.106.AG (09), 41.216.AN (10), 41.216.AV (16), 55.047.AA (09)

1шт.

2

87600174

HUB

ASSY, Incl 3, 4

1шт.

3

4985063

DOWEL,12mm OD x 20mm L

2шт.

4

NSS

NOT SOLD SEPARAT

Hub, Incl in 2

1шт.

5

87618916

STUD

8шт.

6

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

8шт.

7

87303827

TAPERED BEARING,120mm ID x 170mm OD x 27mm W

2шт.

8

10278340

PLUG,M28 x 1.5 x 11, Brass

1шт.

9

87380329

SEALING WASHER,28.00mm ID x 38.00mm OD x 1.50mm

1шт.
