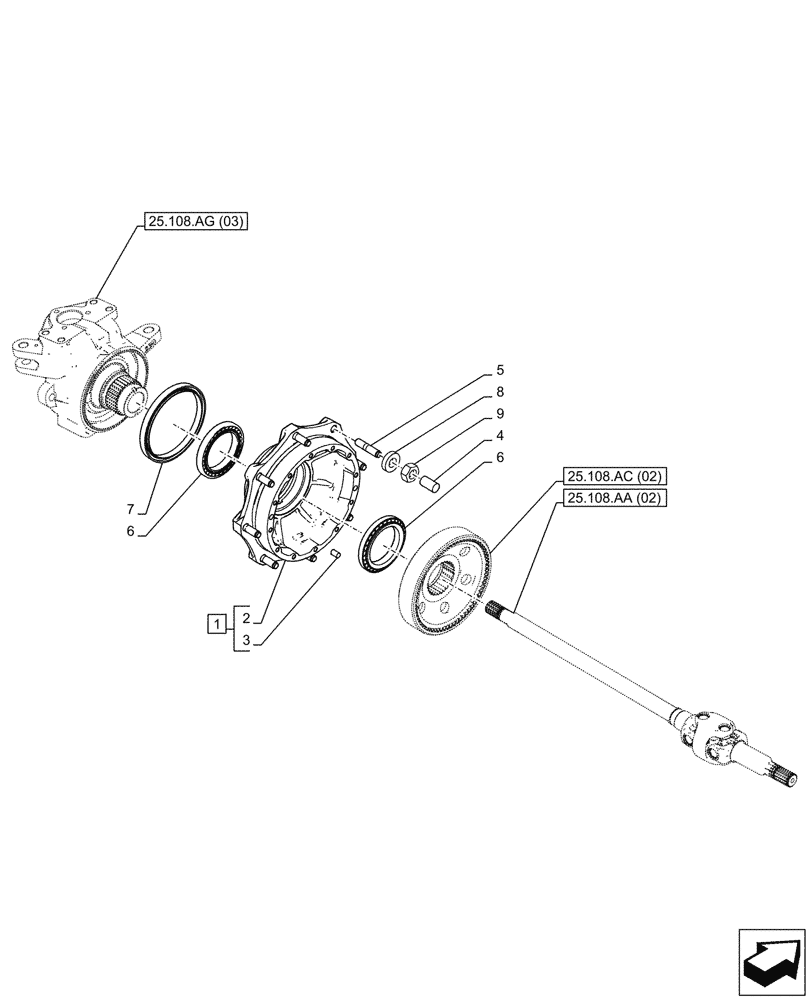

Запчасти Case IH PUMA 185 CVT (25.108.AN[02]) - VAR - 758048 - FRONT AXLE, SUSPENSION, WHEEL, HUB (25) - FRONT AXLE SYSTEM

1

87543151

HUB

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Hub, Incl in 1

1шт.

3

4985063

DOWEL,12mm OD x 20mm L

2шт.

4

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

8шт.

5

87618916

STUD

8шт.

6

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

2шт.

7

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

1шт.

8

47630556

WASHER,17.0mm ID x 25.4mm OD x 3.4mm Thk

17.0mm ID x 25.4mm OD x 3.4mm Thk

8шт.

9

10790524

NUT,M16 x 1.5

8шт.
