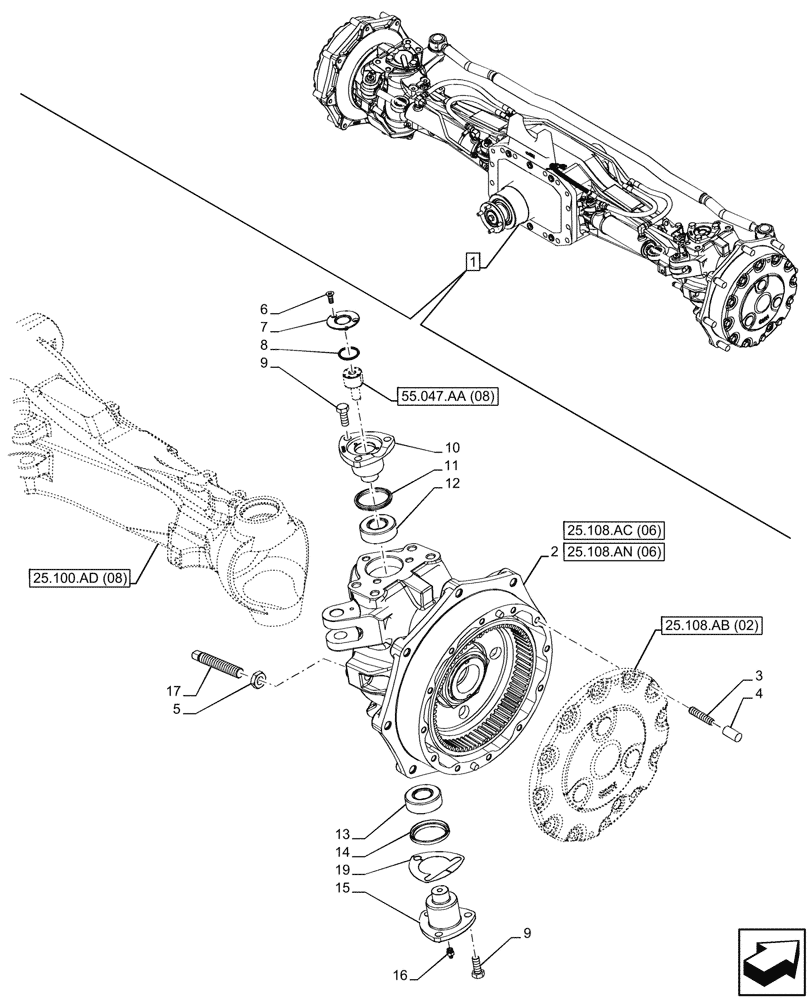

Запчасти Case IH PUMA 185 CVT (25.108.AG[13]) - VAR - 758048 - SUSPENDED FRONT AXLE, STEERING KNUCKLE, RH (25) - FRONT AXLE SYSTEM

1

84381237

LIVE FRONT AXLE

ASSY, 4WD Suspended, Incl 2 - 18

1шт.

See Axle Components also in Figure 25.100.AD (08), 25.102.AD (08), 25.108.AA (07), 25.108.AB (02), 25.108.AG (14), 41.106.AG (08), 41.216.AN (09), 41.216.AV (15), 55.047.AA (08)

1шт.

2

84189974

ASSY, RH

1шт.

3

87618916

STUD

8шт.

4

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

8шт.

5

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

1шт.

6

13299214

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

7

84384510

TOP

1шт.

8

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

9

14254434

SCREW,Hex, M14 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

10

87345372

BALL STUD

Upper

1шт.

11

47137701

SEAL,70mm ID x 90mm OD x 10mm Thk

1шт.

12

47137676

SPH ROLLER BEARING,40mm ID x 80mm OD x 24.75mm W

1шт.

13

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

1шт.

14

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

1шт.

15

87382384

BALL STUD

1шт.

16

13407211

LUBE NIPPLE,M10 x 1

1шт.

17

87751874

ADJUSTMENT SCREW,M18 x 120mm, Cl 10.9

1шт.

18

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

2шт.

18

5137115

SHIM,0.15mm Thk

1шт.

18

5137116

SHIM,70.5mm ID x 115mm OD x 0.2mm Thk

1шт.

18

5137117

SHIM,70.5mm ID x 115mm OD x 0.25mm Thk

1шт.

18

5137118

SHIM,70.5mm ID x 115mm OD x 0.3mm Thk

1шт.
