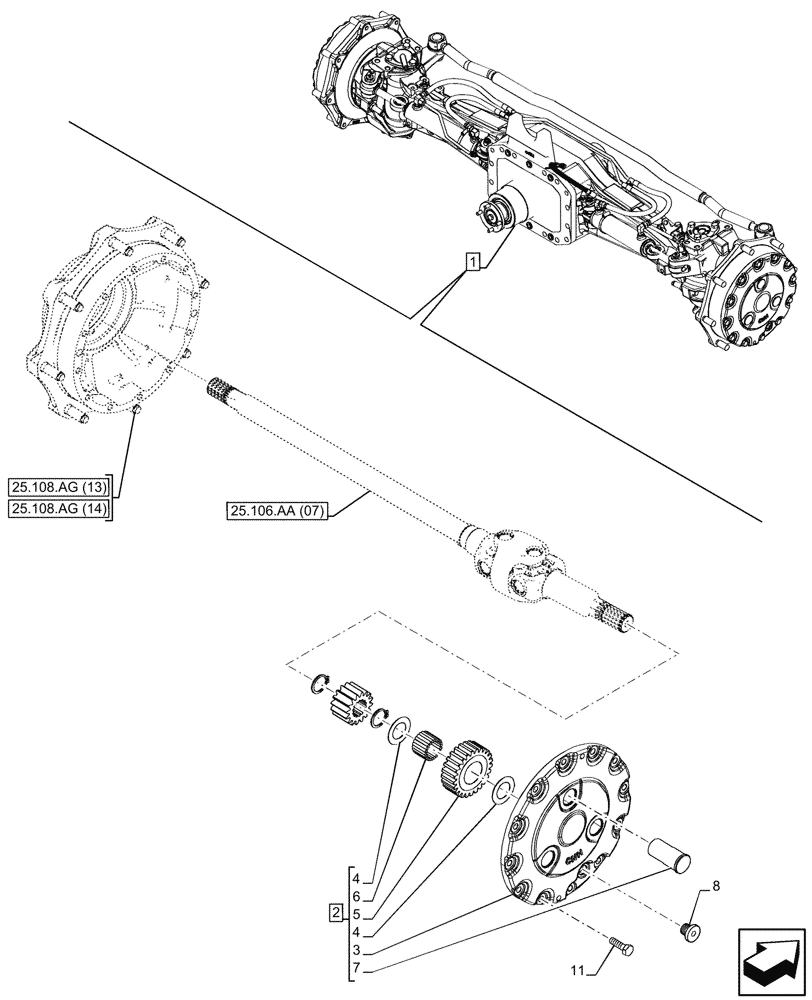

Запчасти Case IH PUMA 185 CVT (25.108.AB[02]) - VAR - 758048 - SUSPENDED FRONT AXLE, PLANETARY GEAR (25) - FRONT AXLE SYSTEM

1

84381237

LIVE FRONT AXLE

ASSY, 4WD Suspended, Incl 2 - 11

1шт.

See Axle Components also in Figure 25.100.AD (08), 25.102.AD (08), 25.108.AA (07), 25.108.AG (13), 25.108.AG (14), 41.106.AG (08), 41.216.AN (09), 41.216.AV (15), 55.047.AA (08)

1шт.

2

5181054

CARRIER

ASSY, Incl 3 - 7

1шт.

3

5181055

CARRIER

1шт.

4

4998022

THRUST WASHER,32mm ID x 55mm OD x 0.8mm Thk

6шт.

5

5102132

PLANETARY GEAR

3шт.

6

5101692

NEEDLE BEARING,31.9mm ID x 41.9mm OD x 35.5mm W

3шт.

7

5181056

PIN,35mm OD x 75.5mm L

3шт.

8

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

9

5123651

SNAP RING,36mm, External

2шт.

10

84262815

PLANETARY GEAR

1шт.

11

14274634

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

12шт.
