Запчасти Case IH PUMA 185 CVT (25.108.AA[06]) - VAR - 337416 - FRONT AXLE, SHAFT (25) - FRONT AXLE SYSTEM

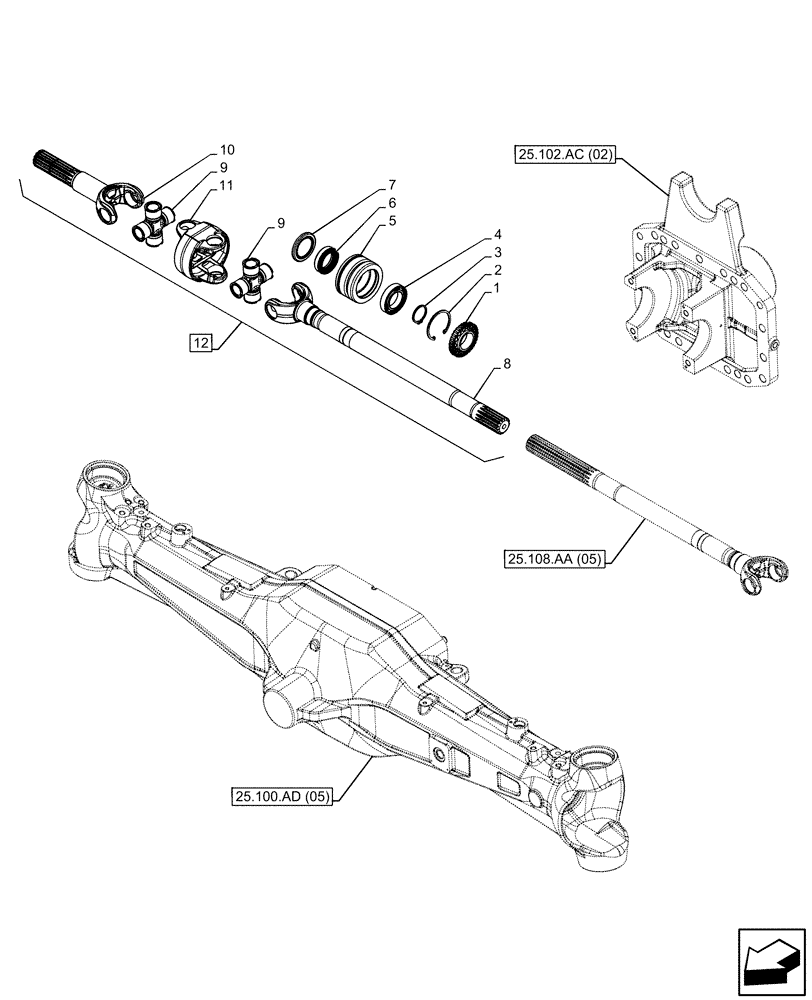

Схема запчастей Case IH PUMA 185 CVT - (25.108.AA[06]) - VAR - 337416 - FRONT AXLE, SHAFT (25) - FRONT AXLE SYSTEM
25.102.ac (02)
10
2
5
11
8
4
25.100.ad (05)
12
9
1
6
3
9
7
25.108.aa (05)

Артикул

Название

Примечание

Количество

1

84524599

GEAR

1шт.

2

11061376

SNAP RING,M68, Int

68 mm int.

1шт.

3

5123651

SNAP RING,36mm, External

1шт.

4

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

40 x 68 x 15 mm

1шт.

5

84181579

BUSHING,60mm ID x 95mm OD x 52mm L

1шт.

6

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

1шт.

7

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

1шт.

8

84494173

AXLE-SHAFT, ARTICULA

ASSY, Contains Ref. 9, 10, 11; RH

1шт.

9

47558291

SPIDER

2шт.

10

87568624

U-JOINT SPIDER

1шт.

11

84189184

SHAFT

1шт.

12

84524602

AXLE-SHAFT, ARTICULA

ASSY, Contains Ref. 1-11

1шт.

Выбрано товаров: 12
