(25.102.AT[04]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, DIFFERENTIAL LOCK, LINE

Запчасти Case IH PUMA 185 CVT (25.102.AT[04]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, DIFFERENTIAL LOCK, LINE (25) - FRONT AXLE SYSTEM

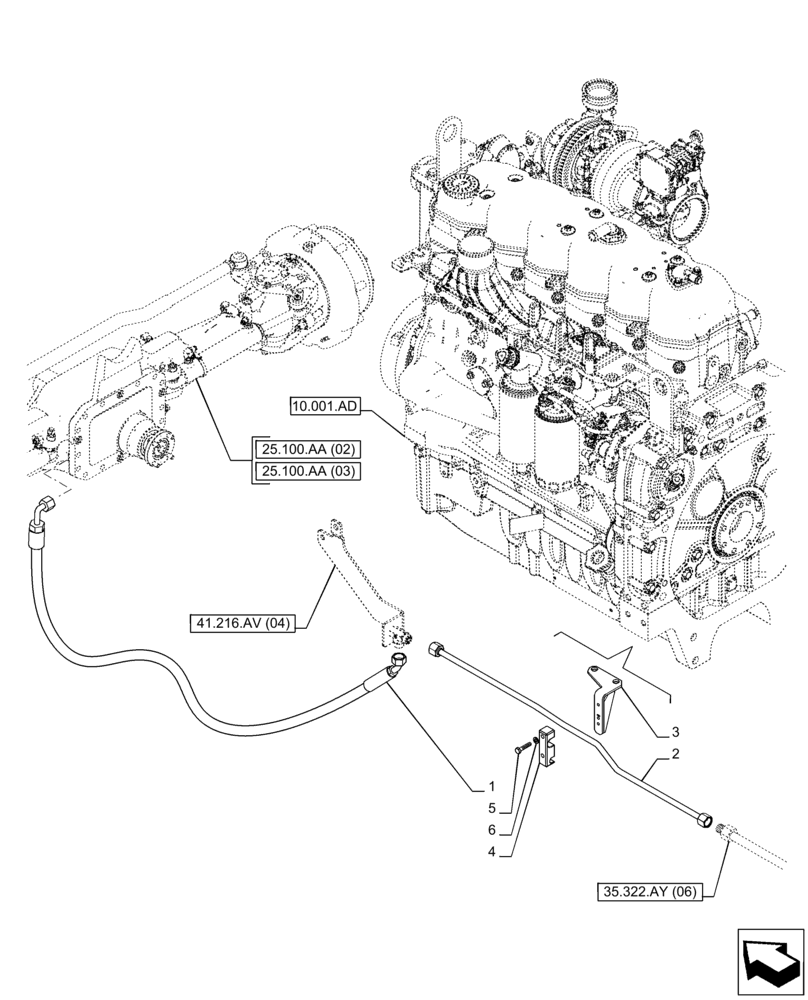

Схема запчастей Case IH PUMA 185 CVT - (25.102.AT[04]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, DIFFERENTIAL LOCK, LINE (25) - FRONT AXLE SYSTEM
25.100.aa (02)
25.100.aa (03)
41.216.av (04)
4
6
35.322.ay (06)
3
10.001.ad
1
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47466375

HOSE

Differential Lock

1шт.

2

47610032

PIPE

Differential Lock

1шт.

3

47475527

BRACKET

1шт.

4

87325889

BRACKET

1шт.

5

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

6

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.
