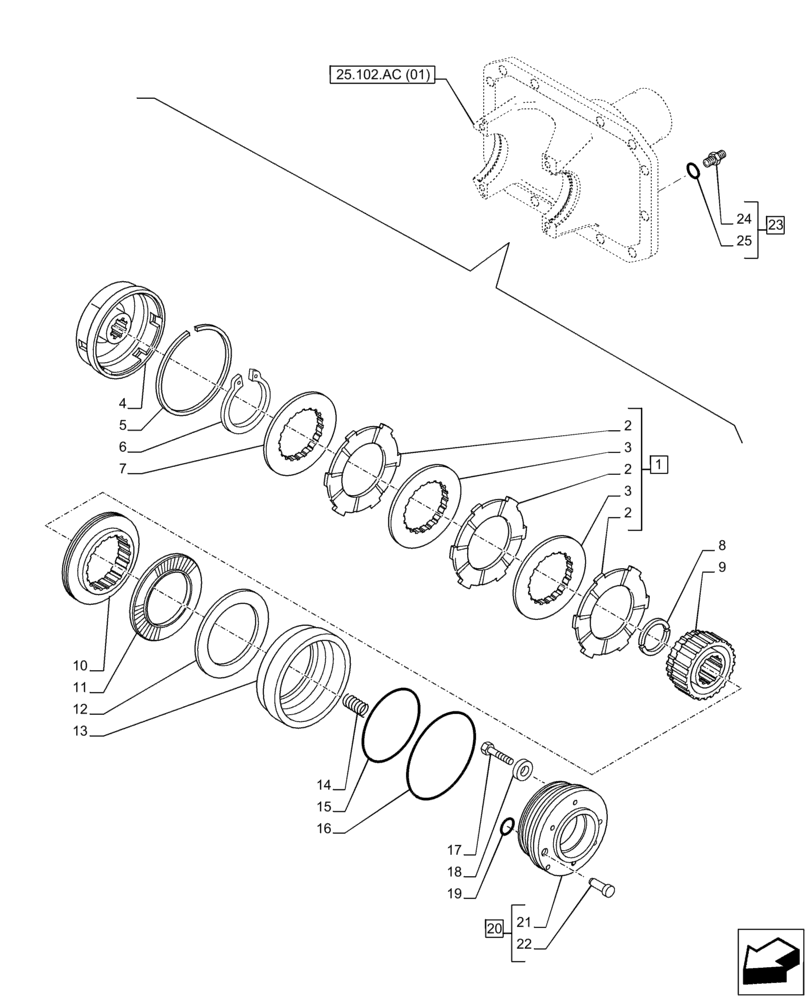

Запчасти Case IH PUMA 185 CVT (25.102.AS[01]) - VAR - 391157 - 4WD FRONT AXLE, DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM

1

5198089

CLUTCH PACK

ASSY, Incl 2, 3

1шт.

2

5198090

CLUTCH PLATE,132mm ID x 194mm OD

6шт.

3

5198088

CLUTCH PLATE,119mm ID x 180mm OD

5шт.

4

5134083

HOUSING

1шт.

5

5134095

CIRCLIP,200mm ID

1шт.

6

11083176

SNAP RING,M125, Ext

1шт.

7

5141750

RING GEAR

1шт.

8

5135032

HALF-RING,58mm ID x 70mm OD x 4mm Thk

1шт.

9

5134099

HUB

1шт.

10

5144582

DISC,119mm ID x 180mm OD x 15mm Thk

1шт.

11

5134174

ROLLER BEARING,140mm ID x 180mm OD x 5mm W

1шт.

12

5134175

WASHER,140mm ID x 180mm OD x 1mm Thk

1шт.

13

5134093

PLUNGER

1шт.

14

5120761

SPRING,7.7mm OD x 20.5mm L

1шт.

15

5140120

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

1шт.

16

5140121

O-RING,0.103" Thk x 6.737" ID, -166, Cl 5, 75 Duro

1шт.

17

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

5шт.

18

10569374

LOCK WASHER,M8

5шт.

19

14452881

O-RING,7.65mm ID x 1.78" Width

1шт.

20

5148468

FLANGE

ASSY, Incl 21, 22

1шт.

21

NSS

NOT SOLD SEPARAT

Flange, Incl in 20

1шт.

22

5148467

PIN,6mm OD x 24.5mm L

1шт.

23

5154713

HYD CONNECTOR

ASSY, Incl 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Connector, Incl in 23

1шт.

25

14437885

O-RING,13.30mm ID x 2.40mm

1шт.
