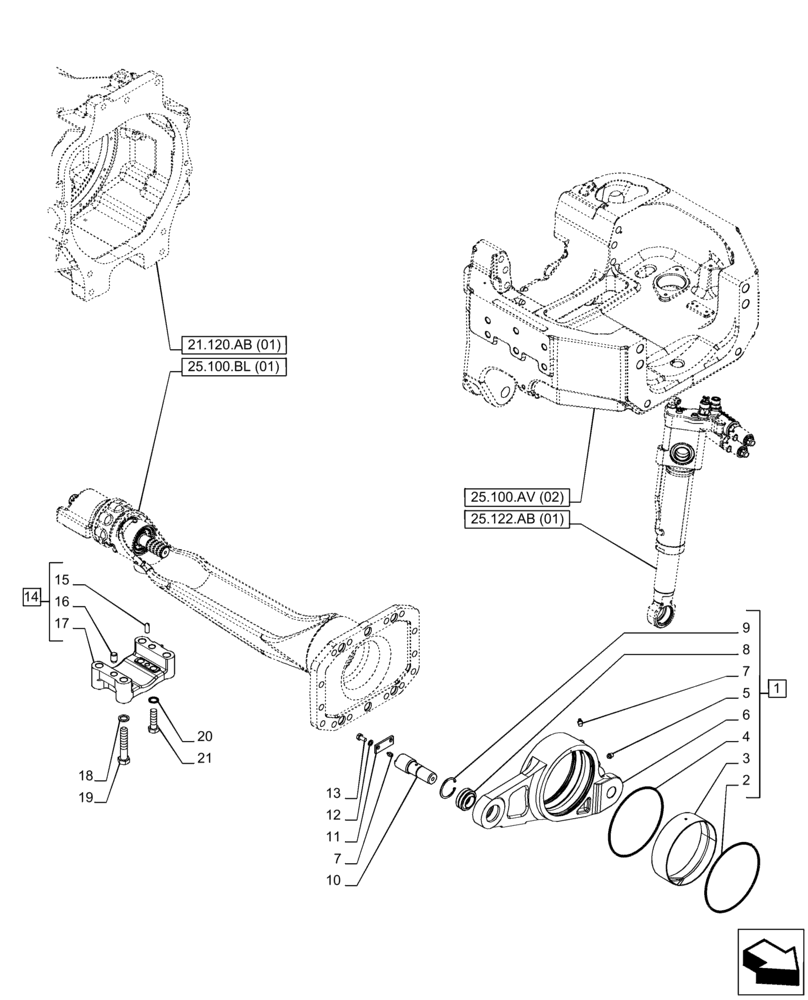

Запчасти Case IH PUMA 185 CVT (25.100.AV[07]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, SUPPORT (25) - FRONT AXLE SYSTEM

1

87644382

SUPPORT

ASSY, Incl 2 - 6, 7 (Q.ty 1), 8, 9

1шт.

2

14483280

O-RING,8.225" ID x 0.210"

1шт.

3

82020450

BUSHING,200mm ID x 205mm OD x 60mm L

1шт.

4

14483180

O-RING,0.21" Thk x 7.975" ID, -369, Cl 5, 75 Duro

1шт.

5

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

6

NSS

NOT SOLD SEPARAT

Arm, Incl in 1

1шт.

7

13407211

LUBE NIPPLE,M10 x 1

2шт.

8

82016695

SPHERICAL BEARING,60mm ID x 62mm OD x 35mm W

1шт.

9

11061076

SNAP RING,M62, Int

1шт.

10

87305641

PIN,44mm OD x 136mm L

1шт.

11

82016870

BRACKET

1шт.

12

85700672

LOCK WASHER,M10

2шт.

13

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

14

87311709

BLOCK

ASSY, Incl 15 - 18

1шт.

15

10837810

DOWEL,M12 x 30.00mm

2шт.

16

82020394

PIN,M18 x 30.00mm

2шт.

17

NSS

NOT SOLD SEPARAT

Block, Incl in 14

1шт.

18

82014831

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

4шт.

19

11125874

BOLT,Hex, M20 x 105, 12.9

4шт.

20

82014658

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

4шт.

21

14271974

BOLT,Hex, M18 x 1.5 x 60mm, Cl 12.9

4шт.
