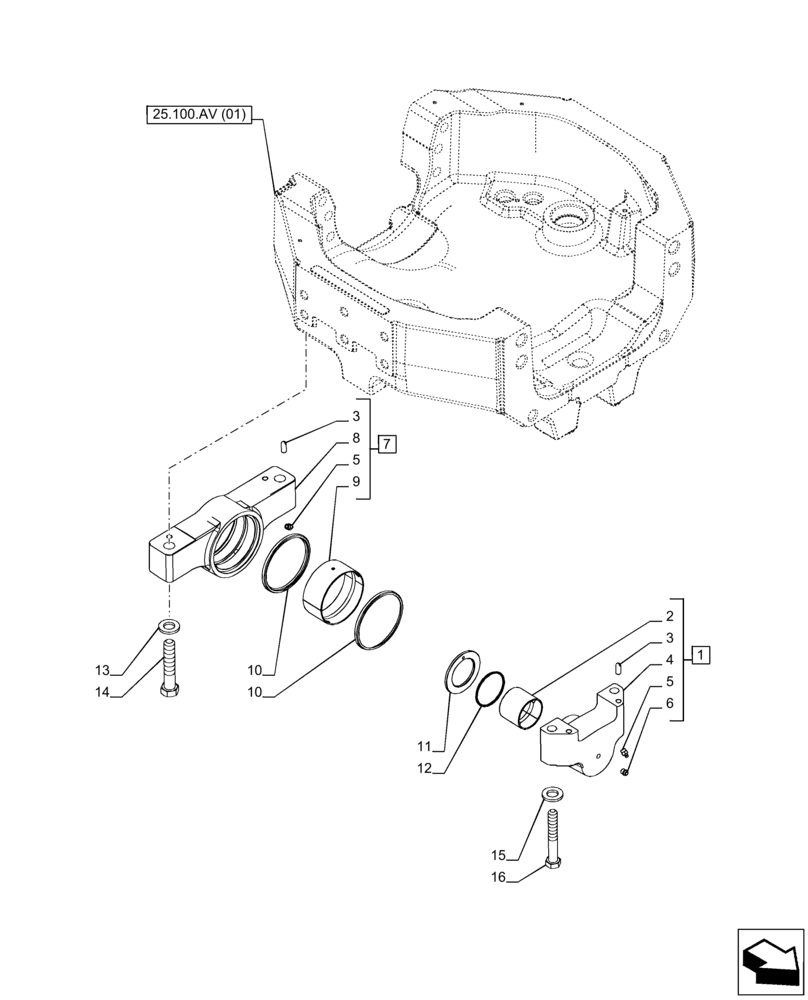

Запчасти Case IH PUMA 185 CVT (25.100.AV[05]) - VAR - 391157 - FRONT AXLE SUPPORT, TRUNNION (25) - FRONT AXLE SYSTEM

1

82037752

BEARING

Front, ASSY, Incl 2, 3 (Q.ty 2), 4, 5, (Q.ty 1), 6

1шт.

2

5140889

BUSHING,62.8mm ID x 68.19mm OD x 55mm L

1шт.

3

10837710

DOWEL,M10 x 25

4шт.

4

NSS

NOT SOLD SEPARAT

Trunnion, Incl in 1

1шт.

5

13407211

LUBE NIPPLE,M10 x 1

2шт.

6

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

7

82037750

BEARING

Rear, ASSY, Incl 3 (Q.ty 2), 5 (Q.ty 1), 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Trunnion, Incl in 7

1шт.

9

5140589

BUSHING,115.64mm ID x 120.19mm OD x 52mm L

1шт.

10

5188607

SEAL,115.5mm ID x 130mm OD x 7.5mm Thk

2шт.

11

5140888

RING

1шт.

12

274658

O-RING,0.21" Thk x 2.475" ID, -333, Cl 5, 75 Duro

1шт.

13

11191974

BELLEVILLE WASHER,M22 Bolt Size x 42mm OD x 5mm Thk

2шт.

14

15227034

BOLT,M22 x 115mm, Cl 10.9, Full Thd

2шт.

15

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

2шт.

16

15223334

BOLT,Hex, M18 x 125mm, Cl 10.9, Full Thd

2шт.
