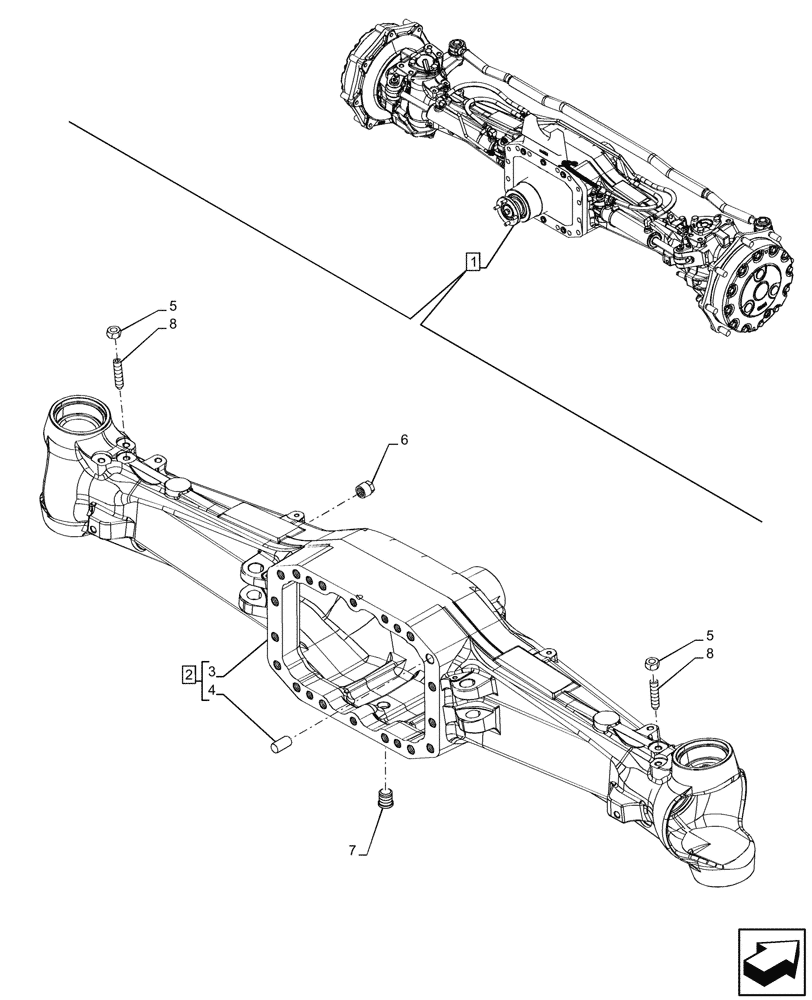

Запчасти Case IH PUMA 185 CVT (25.100.AD[08]) - VAR - 758048 - SUSPENDED FRONT AXLE, HOUSING (25) - FRONT AXLE SYSTEM

1

84381237

LIVE FRONT AXLE

ASSY, 4WD Suspended, Incl 2 - 8

1шт.

See Axle Components also in Figure 25.102.AD (08), 25.108.AA (07), 25.108.AB (02), 25.108.AG (13), 25.108.AG (14), 41.106.AG (08), 41.216.AN (09), 41.216.AV (15), 55.047.AA (08)

1шт.

2

87633093

AXLE HOUSING

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Housing, Incl in 2

1шт.

4

5174376

DOWEL,M16 x 30

2шт.

5

16101511

NUT,M12 x 1.25, Cl 8

2шт.

6

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

7

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

8

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.
