Запчасти Case IH PUMA 185 CVT (23.314.AH) - VAR - 391157 - 4WD DRIVESHAFT FOR FIXED FRONT AXLE (23) - FOUR WHEEL DRIVE SYSTEM

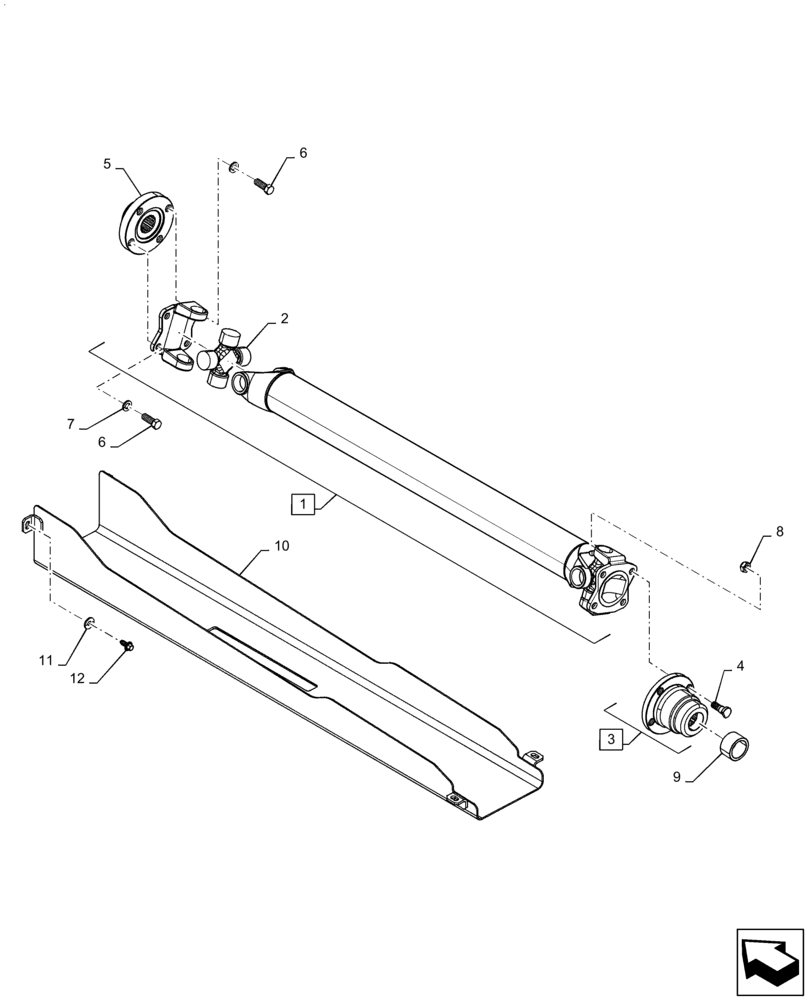

Схема запчастей Case IH PUMA 185 CVT - (23.314.AH) - VAR - 391157 - 4WD DRIVESHAFT FOR FIXED FRONT AXLE (23) - FOUR WHEEL DRIVE SYSTEM
5
11
2
6
12
3
7
4
9
1
6
8
10

Артикул

Название

Примечание

Количество

1

84486155

DRIVE SHAFT

Front Axle, Incl 2

1шт.

2

84512471

SERVICE KIT,Drive Shaft

U-Joint

1шт.

3

47135489

SPLINED COUPLING

Incl 4

1шт.

4

87550808

PIN,12.5mm OD x 37mm L

4шт.

5

87309421

FLANGE

Front Axle Drive Shaft

1шт.

6

87601117

BOLT,Hex, 7/16" - 20 x 1-1/4"

4шт.

7

83935787

LOCK WASHER,7/16"

4шт.

8

82936516

LOCK NUT,7/16"-20

4шт.

9

47135379

SPACER,34.6mm ID x 45mm OD x 26mm L

1шт.

10

87389039

SHIELD

Front Axle Drive Shaft

1шт.

11

11198174

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

4шт.

12

82019896

FLANGE BOLT,Hex, M8 x 1.5 x 16mm, Piloted

4шт.

Выбрано товаров: 12
