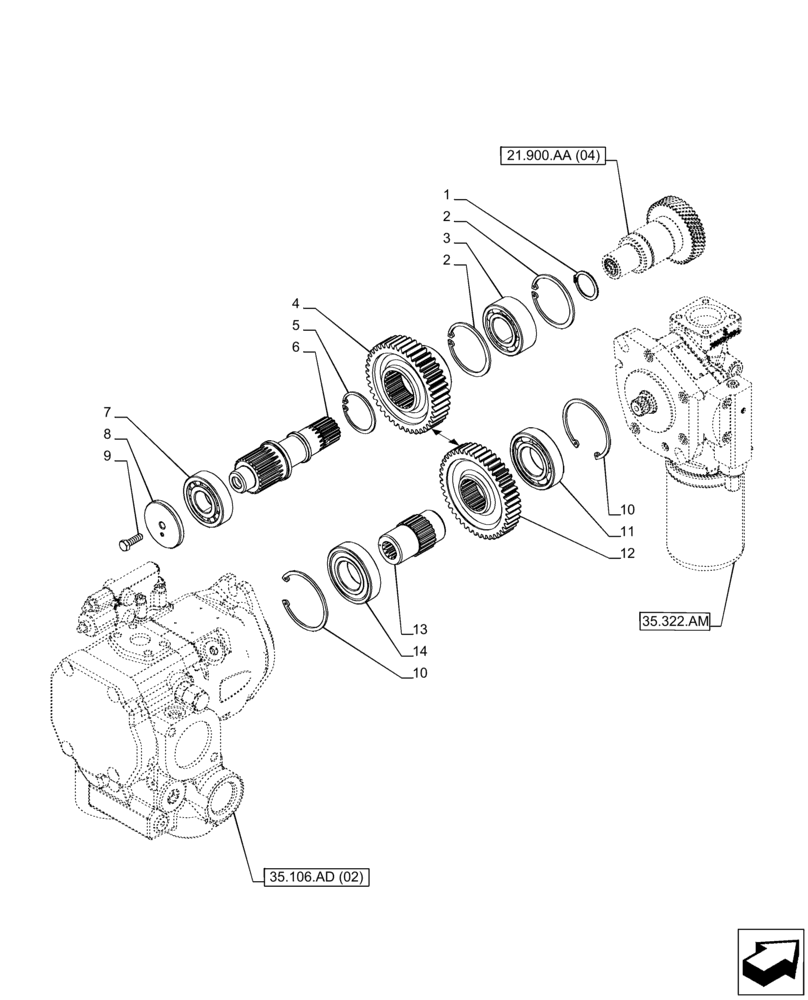

Запчасти Case IH PUMA 185 CVT (21.900.AA[03]) - VAR - 391161, 758056 - HYDRAULIC PUMP, DRIVEN GEAR, CVT (21) - TRANSMISSION

1

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

2

11061576

SNAP RING,M72, Int

2шт.

3

87591976

BALL BEARING,35mm ID x 72mm OD x 27mm W

1шт.

4

87535659

DRIVEN GEAR,42T

Intermediate

1шт.

5

11060676

CIRCLIP,M55, Int

1шт.

6

87535661

DRIVE SHAFT,172mm L, 18/24T

Intermediate Gear

1шт.

7

87591964

ROLLER BEARING,30mm ID x 72mm OD x 19mm W

1шт.

8

87591176

SPACER,M10 x 1.25 x 9.25mm L

1шт.

9

16043721

SCREW,Hex, M8 x 1.25 x 28mm, Cl 8.8, Full Thd

1шт.

10

300633

SNAP RING,M80, Internal

2шт.

11

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

12

87535639

DRIVING GEAR

Driven

1шт.

13

87614882

SHAFT

Driven Gear

1шт.

14

87591979

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.
