Запчасти Case IH PUMA 185 CVT (21.506.BE[02]) - VAR - 337427, 337433, 391138, 758022 - TRANSMISSION, LUBRICATION LINE, VALVE, COMPONENTS (21) - TRANSMISSION

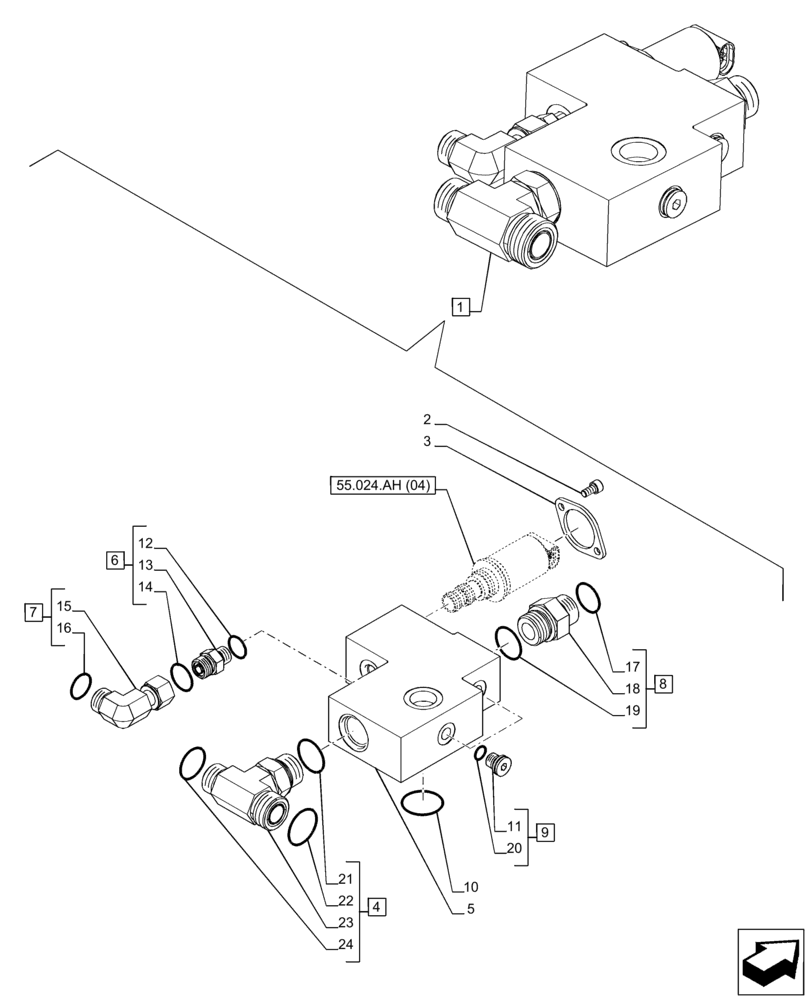

Схема запчастей Case IH PUMA 185 CVT - (21.506.BE[02]) - VAR - 337427, 337433, 391138, 758022 - TRANSMISSION, LUBRICATION LINE, VALVE, COMPONENTS (21) - TRANSMISSION
10
15
12
17
23
18
16
4
19
55.024.ah (04)
14
24
13
7
22
20
2
21
5
1
8
6
9
11
3

Артикул

Название

Примечание

Количество

1

87676058

MANIFOLD

ASSY, Incl 2 - 10

1шт.

2

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

3

5194826

BRACKET

1шт.

4

87676315

TEE

ASSY, Incl 21 - 24

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

6

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 12 - 14

1шт.

7

87676103

HYD CONNECTOR

ASSY, Incl 15, 16

1шт.

8

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

ASSY, Incl 17 - 19

1шт.

9

86598043

PLUG,M12 x 1.5 ORB

ASSY, Incl 11, 20

2шт.

10

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

1шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

16

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

17

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

18

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

1шт.

19

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

20

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

21

14438185

O-RING,24mm ID x 3mm

1шт.

22

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

23

NSS

NOT SOLD SEPARAT

Tee, Incl in 11

1шт.

24

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

Выбрано товаров: 24
