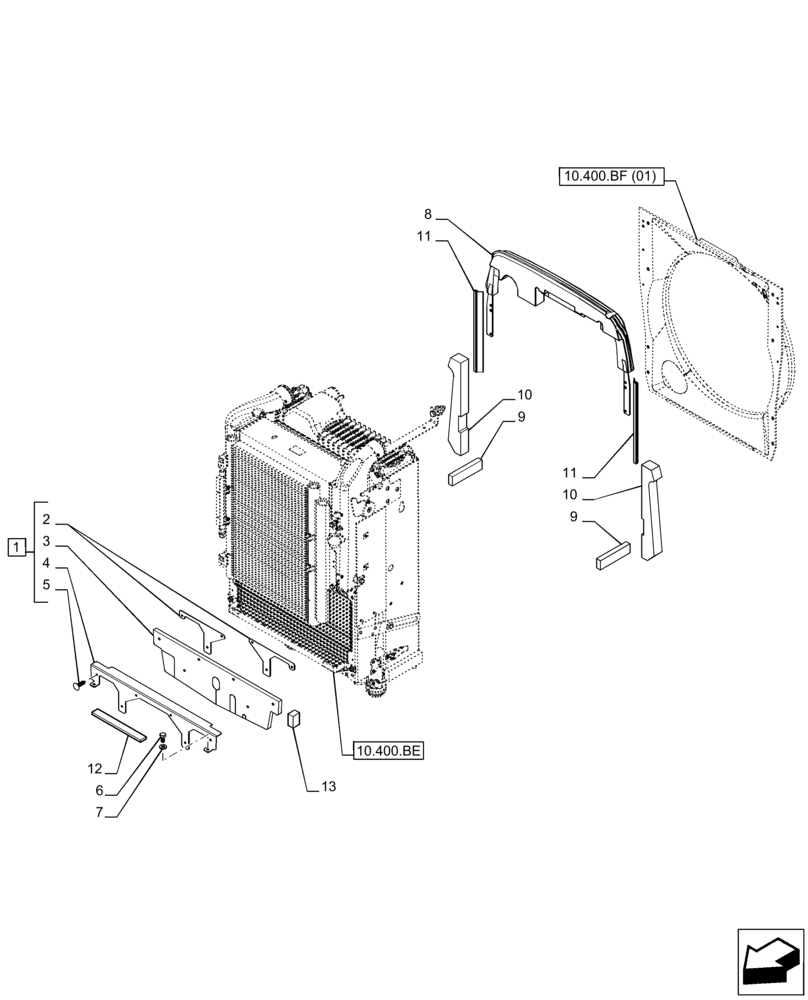

Запчасти Case IH PUMA 185 CVT (10.400.BF[12]) - VAR - 758092 - RADIATOR, SEAL (10) - ENGINE

1

84543377

DEFLECTOR

ASSY, Incl 2 - 5

1шт.

2

87649703

DEFLECTOR

2шт.

3

84543379

FOAM

1шт.

4

84543378

BAFFLE

1шт.

5

87635853

STUD,7.1mm D

6шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

7

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

8

47385560

SEAL

Hood to Air Duct

1шт.

9

82030145

FOAM INSULATION

Radiator Air Side

2шт.

10

87380756

FOAM INSULATION

Radiator Side to Hood

2шт.

11

82039110

SEAL

Hood to Radiator Side

2шт.

12

82038264

SEAL,510mm x 15mm x 5mm

Radiator to Baffle

1шт.

13

82039468

INSULATOR

FHPL

1шт.
