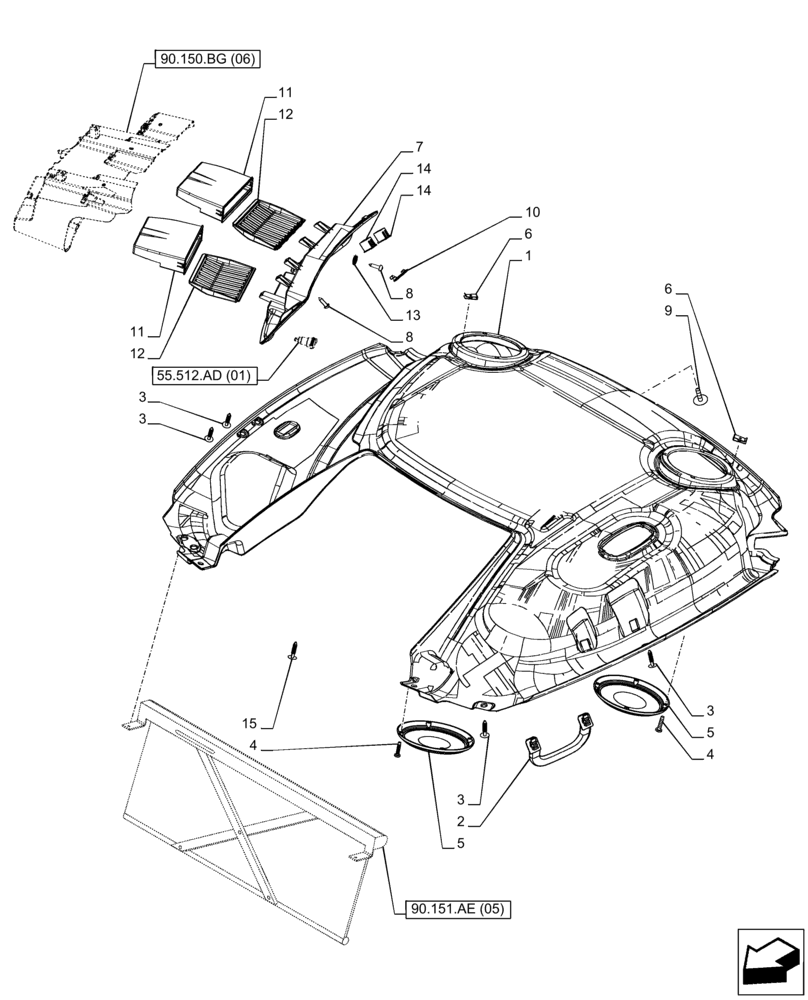

Запчасти Case IH PUMA 185 CVT (90.160.AX[03]) - VAR - 758139, 758143 - HEADLINER, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47365504

HEADLINER

Wheat, with High Visibility Panel

1шт.

2

84227380

HANDLE

Wheat

1шт.

3

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

Gray

4шт.

4

15916007

SELF-TAP SCREW,Pozidriv Flat Hd Csk, M3.50 x 1.3 x 19mm

8шт.

5

82022875

GRILLE,185mm OD

2шт.

6

47557619

CLIP,M3.50 x 19mm

M3.5 x 19

8шт.

7

47575526

CONSOLE

Wheat, less Electric Mirrors, Serial Range: -C7410

1шт.

7

47778962

CONSOLE

Wheat, less Electric Mirrors, Start Serial: D7410

1шт.

8

15903904

SCREW,Pan Hd, M4.8 x 1.6 x 19mm

4шт.

9

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

Wheat

1шт.

10

47363750

PLUG,23.1mm OD

Wheat

1шт.

11

47364183

BOX

Wheat

2шт.

12

47470835

INSERT

Black

2шт.

13

14452480

O-RING,0.07" Thk x 0.145" ID, -7, Cl 5, 75 Duro

1шт.

14

82022763

PLUG

2шт.

15

81870039

FASTENER,M8 x 1.5 x 22mm

Black

1шт.
