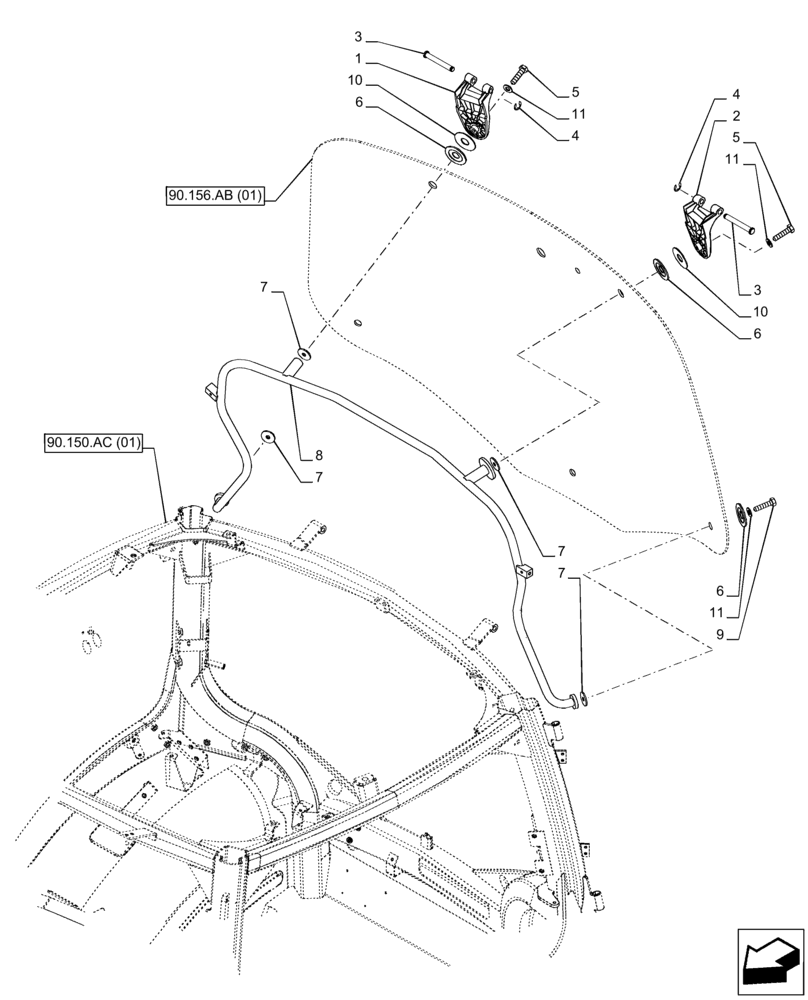

Запчасти Case IH PUMA 185 CVT (90.156.AD[02]) - VAR - 391177, 391179, 391233, 758130, 758131, 758132, 758139, 758140, 758141 - WINDOW, REAR, HINGE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

82034266

HINGE

RH

1шт.

2

82034267

HINGE

LH

1шт.

3

82033133

PIN,17mm OD x 96mm L

Rear Window Hinge

2шт.

4

11088171

SNAP RING,M11

2шт.

5

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

6

44995003

SEALING WASHER,20.0mm ID x 60.0mm OD x 3.0mm Thk

Door Hinge

4шт.

7

81868323

SEALING WASHER,8.1mm ID x 36mm OD x 5.3mm Thk

Back Window Regulator

4шт.

8

82030829

HANDLE

Rear Widow

1шт.

9

82013304

SCREW,Pan HD, M8 x 22mm

2шт.

10

82022441

SHIM,22mm ID x 59.5mm OD x 2mm Thk

2шт.

11

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.
