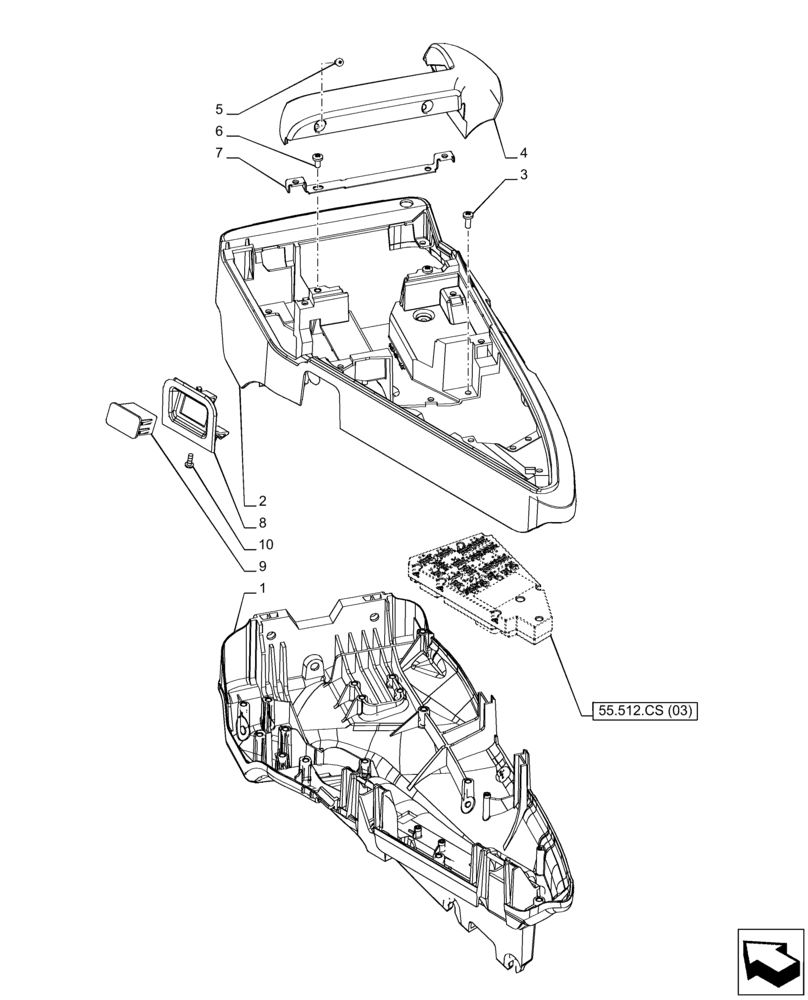

Запчасти Case IH PUMA 185 CVT (90.151.AP[01]) - VAR - 335479, 335480, 335481 - ARMREST, HOUSING & COVERS (EHR) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47510303

SHELL

Lower, With EHR

1шт.

2

84150708

SHELL

Upper, With EHR

1шт.

3

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

10шт.

4

84202333

SUPPORT

1шт.

5

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

2шт.

6

13276021

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 8.8, Full Thd

2шт.

7

84226106

BRACKET

EHR Base

1шт.

8

84150714

BEZEL

For Armrest Adjustment Switch

1шт.

9

82022763

PLUG

1шт.

10

82016959

SCREW,M3.5 x 12mm

1шт.
