Запчасти Case IH PUMA 185 CVT (90.151.AD[04]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

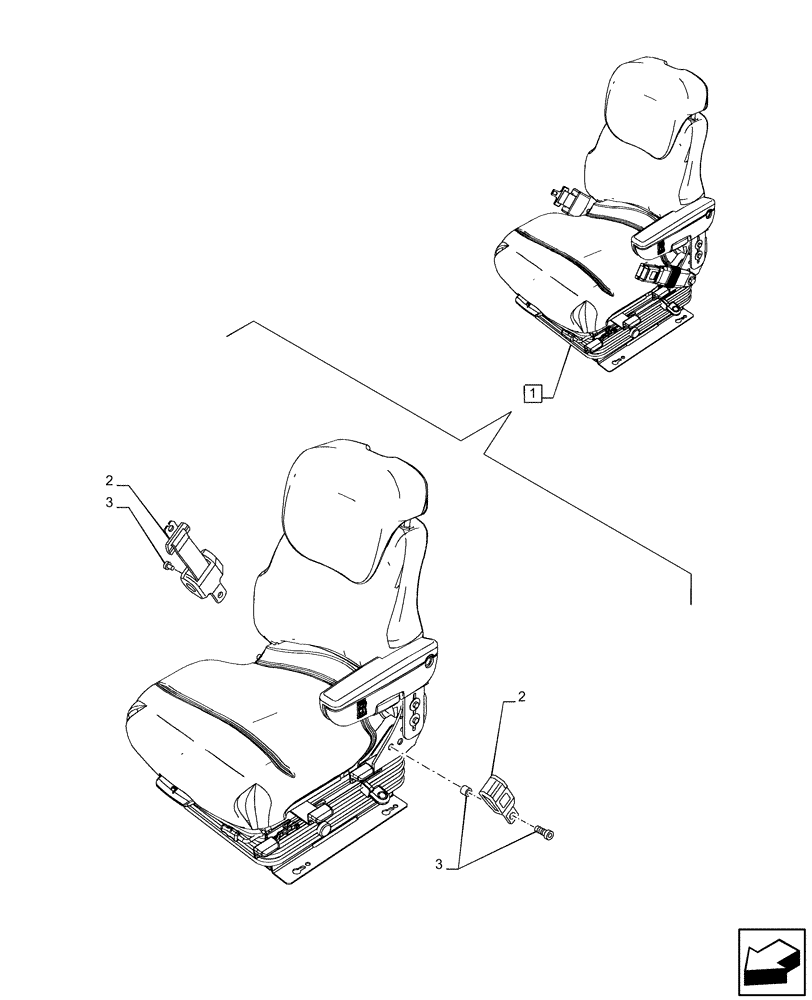

Схема запчастей Case IH PUMA 185 CVT - (90.151.AD[04]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
2
2
1
3

Артикул

Название

Примечание

Количество

1

87706661

SEAT

W/Air Suspension, Assy, Incl 2 - 3

1шт.

See Driver Seat Components also in Figure 55.512.CQ (04), 90.124.AD (04), 90.124.AE (04), 90.124.AH (04)

1шт.

See Driver Seat Components also in Figure 90.124.AL (04), 90.124.AK (07), 90.124.AM (04)

1шт.

2

82020831

KIT

1шт.

3

NSS

NOT SOLD SEPARAT

Slide Rail Mountings, Incl in 1

1шт.
