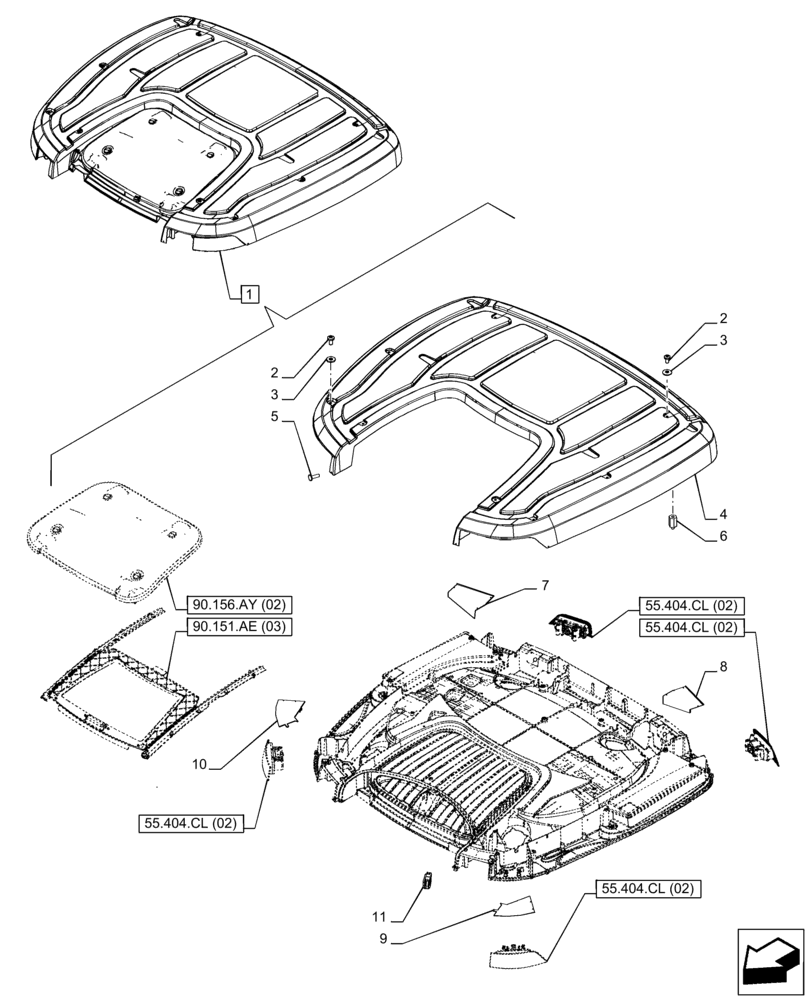

Запчасти Case IH PUMA 185 CVT (90.150.BG[09]) - VAR - 758139, 758141, 758143, 758146 - CAB ROOF, W/ HIGH VISIBILITY PANEL, COMPONENTS (NA MARKET PACKAGE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NS

NOT SERVICED

Roof ASSY, NA, Red, With High Visibility Window, Order Components, Incl 2 - 11

1шт.

2

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

8шт.

3

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

8шт.

4

84276391

ROOF

With High Visibility Window

1шт.

5

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

10шт.

6

82034114

SPACER,M6 x 25mm L

8шт.

7

82033695

COVER

RH, Rear

1шт.

8

82033696

COVER

LH, Rear

1шт.

9

82033694

COVER

LH, Front

1шт.

10

82033693

COVER

RH, Front

1шт.

11

87537655

GROMMET,14mm ID x 36mm OD, Rubber, Black

1шт.
