Запчасти Case IH PUMA 185 CVT (90.150.BG[06]) - VAR - 758139, 758141, 758143, 758146 - CAB ROOF, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

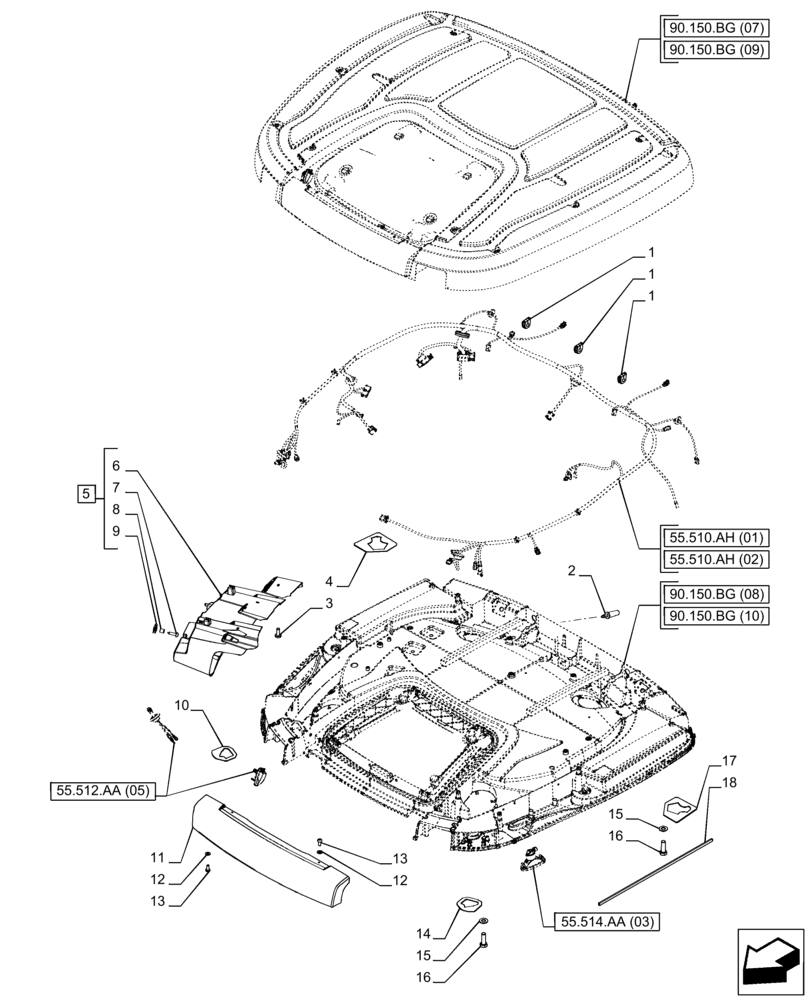

Схема запчастей Case IH PUMA 185 CVT - (90.150.BG[06]) - VAR - 758139, 758141, 758143, 758146 - CAB ROOF, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
55.512.aa (05)
15
55.510.ah (01)
8
90.150.bg (10)
10
2
3
90.150.bg (09)
12
17
55.510.ah (02)
1
9
12
6
16
16
14
1
13
18
90.150.bg (08)
90.150.bg (07)
5
1
13
11
7
55.514.aa (03)
4

Артикул

Название

Примечание

Количество

1

87537655

GROMMET,14mm ID x 36mm OD, Rubber, Black

3шт.

2

82030999

JET

Rear

1шт.

3

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

5шт.

4

82038033

GASKET,10mm Thk

RH, Black

1шт.

5

47718243

BEZEL

ASSY, Incl 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

Carrier, Bezel, Incl in 5

1шт.

7

15903904

SCREW,Pan Hd, M4.8 x 1.6 x 19mm

3шт.

8

NSS

NOT SOLD SEPARAT

Spacer, Incl in 5

3шт.

9

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

4.8 x 14.6 x 0.7

7шт.

10

82023417

GASKET,10mm Thk, Black

RH

1шт.

11

82037425

COVER

Red

1шт.

12

84193288

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4.3 x 9 x 0.8

4шт.

13

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

4шт.

14

82025910

GASKET,10 Thk, Black

1шт.

15

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

16

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

17

82038034

INSULATION

LH, Grey

1шт.

18

47467341

SEAL,30mm W x 15mm Thk x 5000mm L

Rubber, Roof

1шт.

Выбрано товаров: 18
