Запчасти Case IH PUMA 185 CVT (90.150.BG[04]) - VAR - 391179, 758140, 758142, 758145 - CAB ROOF, CARRIER, COMPONENTS (NA MARKET PACKAGE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

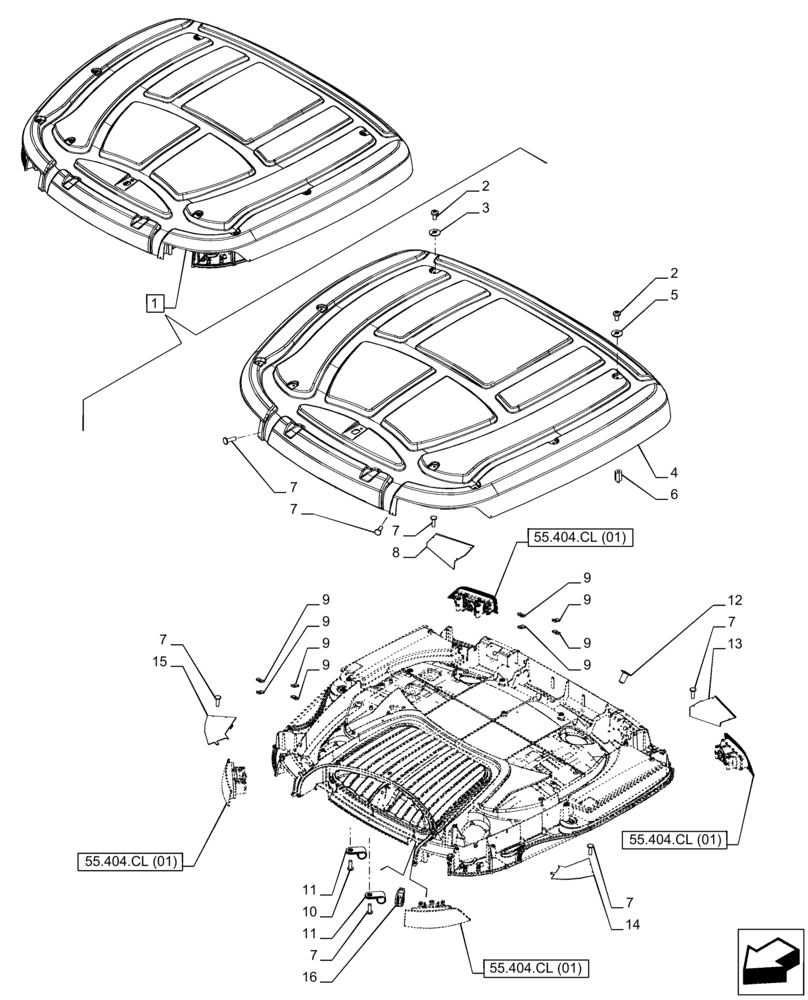

Схема запчастей Case IH PUMA 185 CVT - (90.150.BG[04]) - VAR - 391179, 758140, 758142, 758145 - CAB ROOF, CARRIER, COMPONENTS (NA MARKET PACKAGE) (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.404.cl (01)
14
9
9
7
15
9
5
9
9
55.404.cl (01)
11
9
13
9
7
16
2
7
8
7
7
7
12
6
2
3
55.404.cl (01)
9
10
7
1
55.404.cl (01)
4
11

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Roof ASSY, NA, Red, Less High Visibility Window, Order Components, Incl 2 - 16

1шт.

2

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

9шт.

3

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6 x 16

1шт.

4

84276380

ROOF

NA, Less High Visibility Window

1шт.

5

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

6.7 x 19

9шт.

6

82034114

SPACER,M6 x 25mm L

7шт.

7

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

23шт.

8

82033695

COVER

RH, Rear

1шт.

9

81872135

NUT,Retaining, M4.20

16шт.

10

82034113

SELF-TAP SCREW,Torx, Round HD, M5 x 3 x 25mm

1шт.

11

87343422

CLAMP

2шт.

12

87308028

PLUG

1шт.

13

82033696

COVER

LH, Rear

1шт.

14

82033694

COVER

LH, Front

1шт.

15

82033693

COVER

RH, Front

1шт.

16

87537655

GROMMET,14mm ID x 36mm OD, Rubber, Black

1шт.

Выбрано товаров: 16
