Запчасти Case IH PUMA 185 CVT (90.150.BG[01]) - VAR - 391179, 758140, 758142, 758145 - CAB ROOF (90) - PLATFORM, CAB, BODYWORK AND DECALS

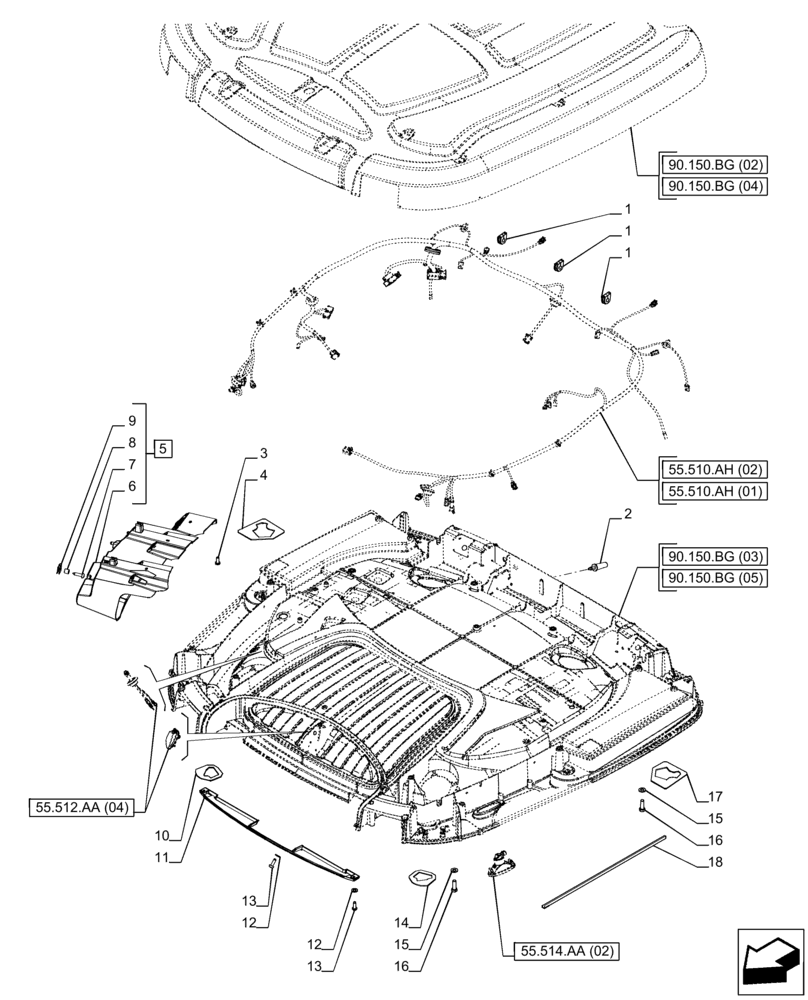

Схема запчастей Case IH PUMA 185 CVT - (90.150.BG[01]) - VAR - 391179, 758140, 758142, 758145 - CAB ROOF (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
12
55.512.aa (04)
55.514.aa (02)
90.150.bg (05)
16
10
18
1
6
13
4
15
11
2
7
90.150.bg (03)
17
16
1
13
14
9
3
90.150.bg (04)
5
55.510.ah (02)
1
8
90.150.bg (02)
12
55.510.ah (01)

Артикул

Название

Примечание

Количество

1

87537655

GROMMET,14mm ID x 36mm OD, Rubber, Black

3шт.

2

82030999

JET

1шт.

3

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

5шт.

4

82038033

GASKET,10mm Thk

RH

1шт.

5

47718243

BEZEL

ASSY, Incl 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

Carrier, Incl in 5

1шт.

7

15903904

SCREW,Pan Hd, M4.8 x 1.6 x 19mm

3шт.

8

NSS

NOT SOLD SEPARAT

Spacer, Incl in 5

3шт.

9

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

U 4.8 x 19

7шт.

10

82023417

GASKET,10mm Thk, Black

RH

1шт.

11

87570853

COVER

Underside

1шт.

12

14496307

WASHER,5.3mm ID x 10mm OD x 1mm Thk

6шт.

13

84187830

SCREW,Torx, Pan HD, M4.2 x 1.4 x 13mm

6шт.

14

82025910

GASKET,10 Thk, Black

1шт.

15

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

16

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

17

82038034

INSULATION

LH

1шт.

18

47467341

SEAL,30mm W x 15mm Thk x 5000mm L

Rubber, Roof

1шт.

Выбрано товаров: 18
