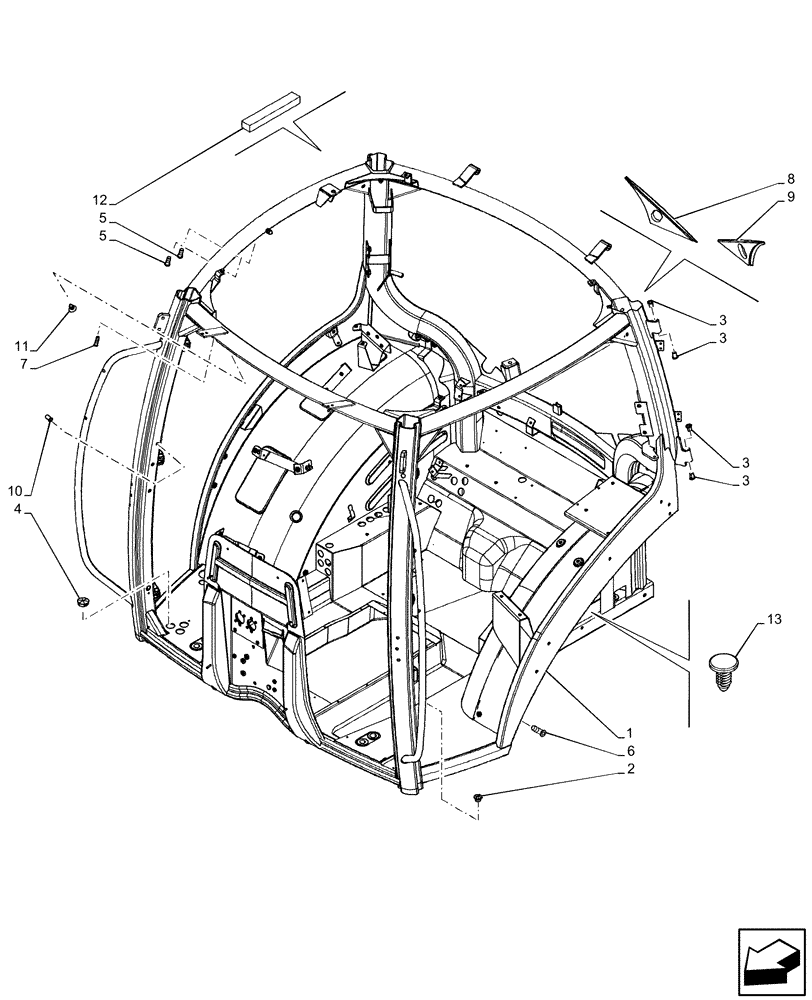

Запчасти Case IH PUMA 185 CVT (90.150.AC[01]) - VAR - 392114, 758250 - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84574461

CAB BODY

1шт.

2

82003283

PLUG,10.5mm OD

Cable Opening Blanking

8шт.

3

82027697

BUSHING,9.5mm ID x 18mm OD x 17mm L

Conical Flanged

8шт.

4

82031549

BLANK-OFF PLUG,35mm OD, Black

Switch PTO

3шт.

5

82024992

RIVET,Flng, 11mm OD x 19.5mm L

M8 x 21

15шт.

6

82024991

NUT,M6

M6 x 19

1шт.

7

82024990

RIVET,Flng, 7mm OD x 16mm L

M5 x 17

2шт.

8

82036801

PLUG

Window RR-RH

1шт.

9

82036800

PLUG

Window RR-LH

1шт.

10

84214045

RIVET,Flat, M10 OD x 25.75mm L

M10 x 25.7

3шт.

11

87716701

PLUG,Blanking, Snap, 6.40mm Dia

1шт.

12

82000180

SEALING STRIP

1шт.

13

83994150

PLUG,4.5-5.7mm OD

1шт.

Valid only for Var. 332971

1шт.
